Cadillac
>>
2006
>>
STS-V V8-4.4L SC VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Supercharger Coolant Pump
Supercharger Coolant Pump

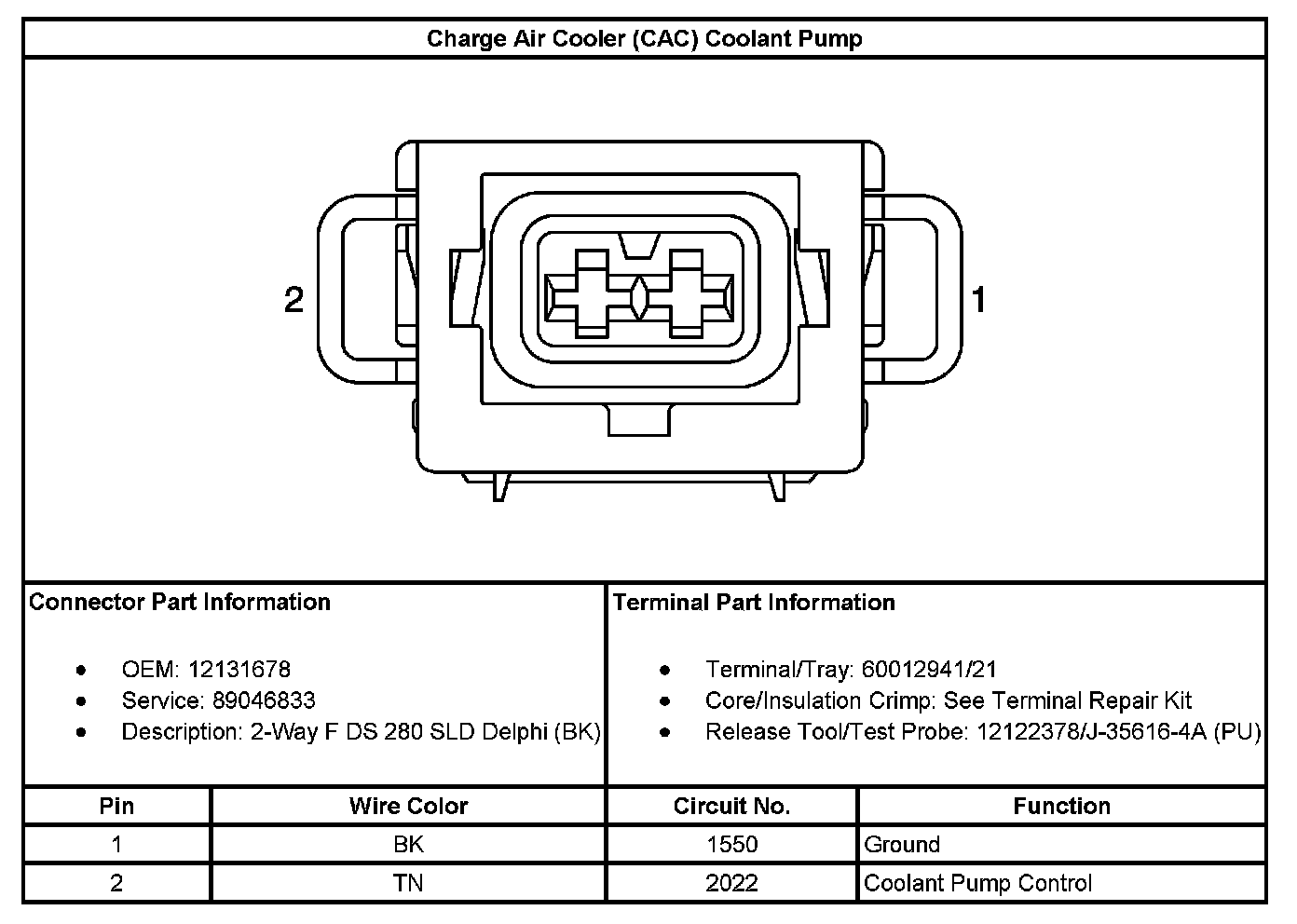

Charge Air Cooler (CAC) Coolant Pump:
