Home >> Cadillac >> 2006 >> STS-V V8-4.4L SC VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> Speaker - RF I/P

Speaker - RF I/P

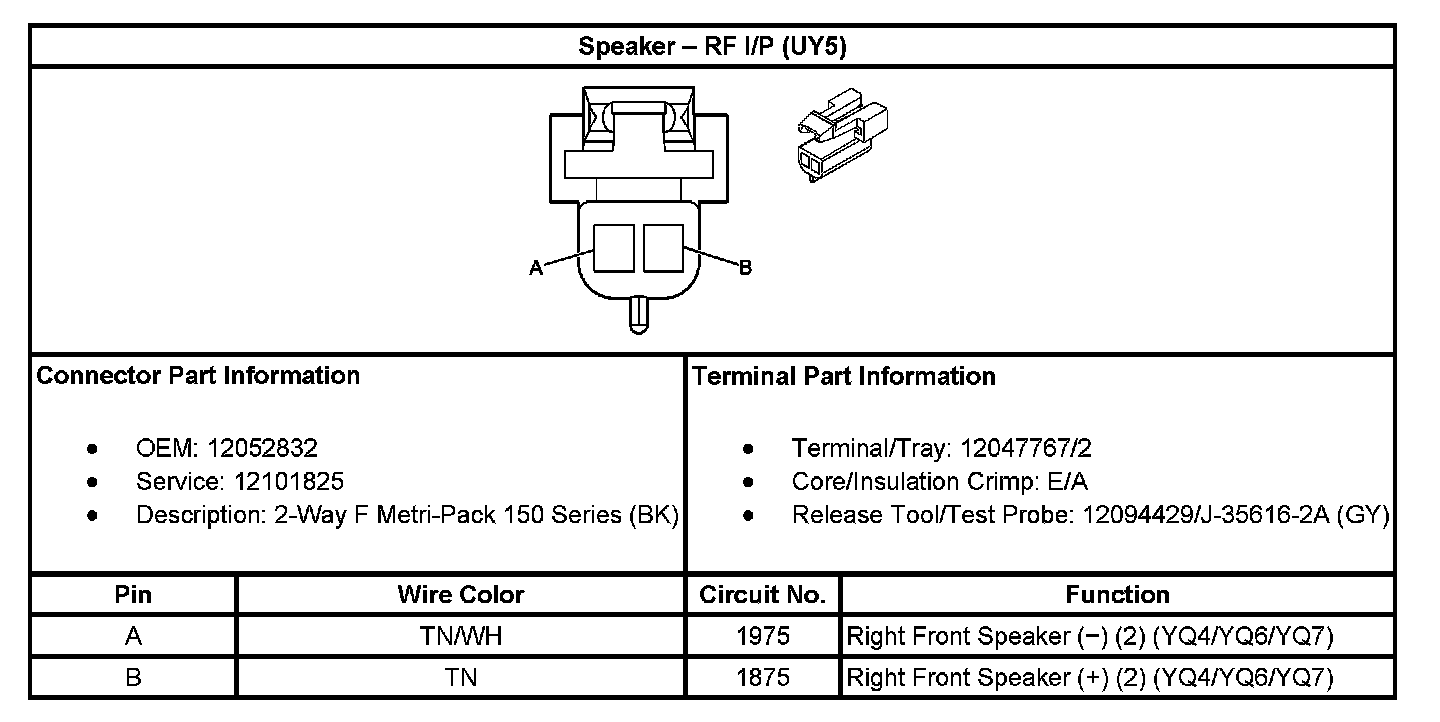

Speaker - RF I/P (With RPO Code UY5):

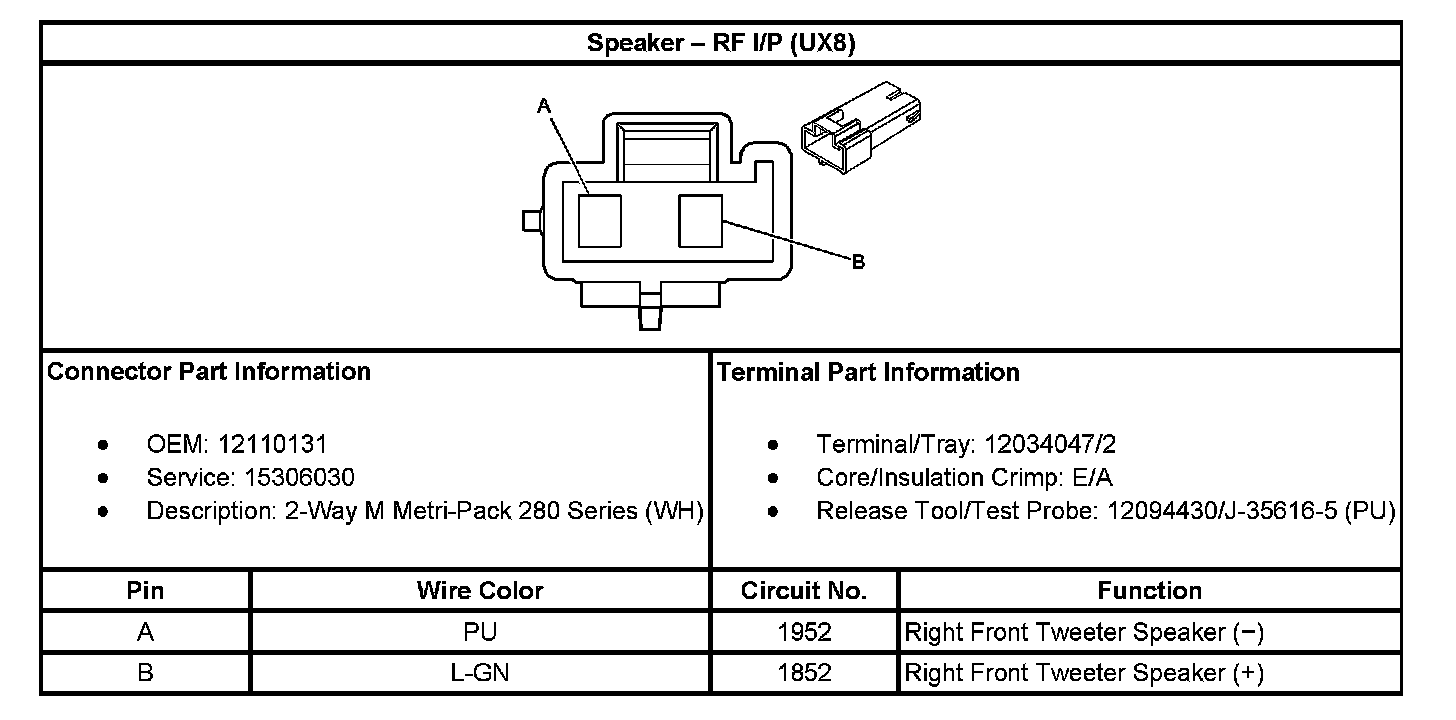

Speaker - RF I/P (With RPO Code UX8):
