Cadillac
>>
2006
>>
STS-V V8-4.4L SC VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Solar Sensor, HVAC
>>
HVAC Systems - Automatic
HVAC Systems - Automatic

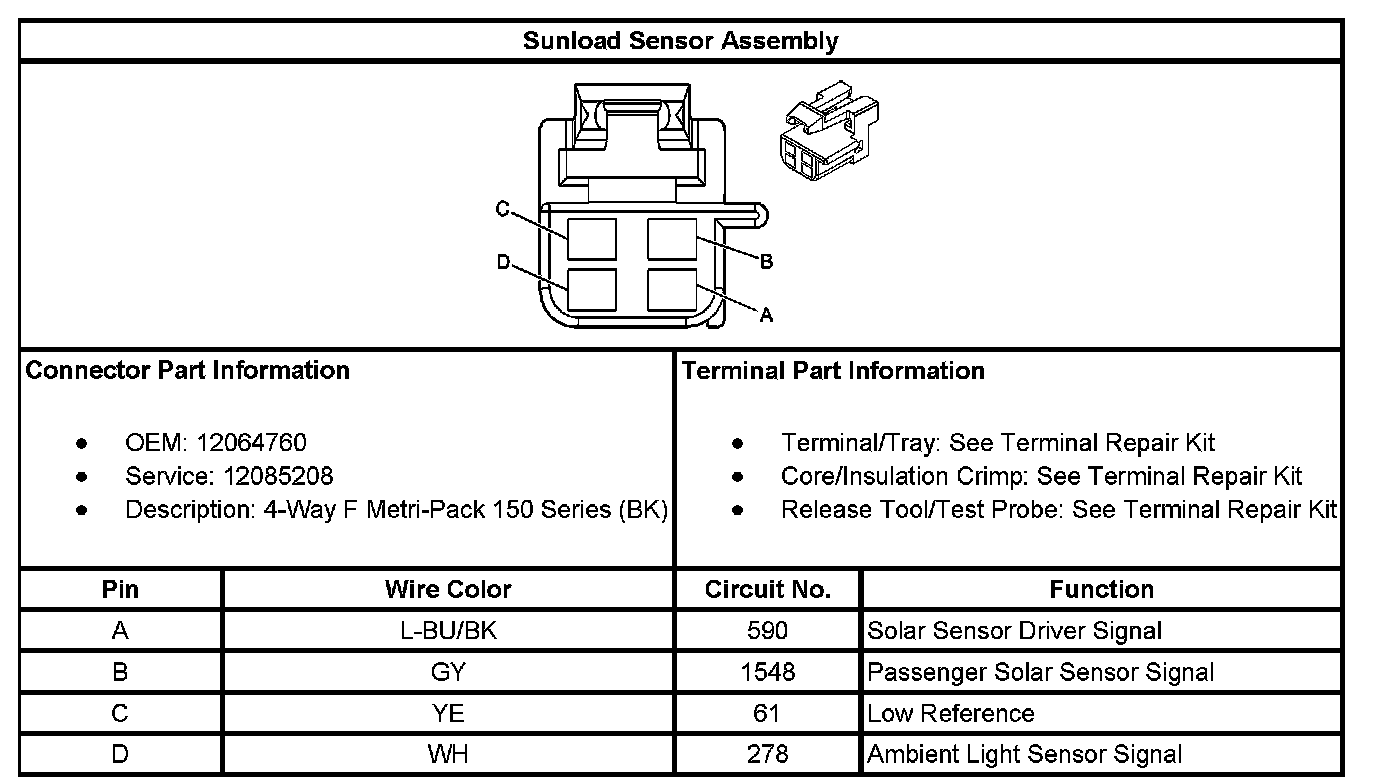

Sunload Sensor Assembly:
