Seat Temperature Element
>>
Heated Seat Element - Passenger
Heated Seat Element - Passenger

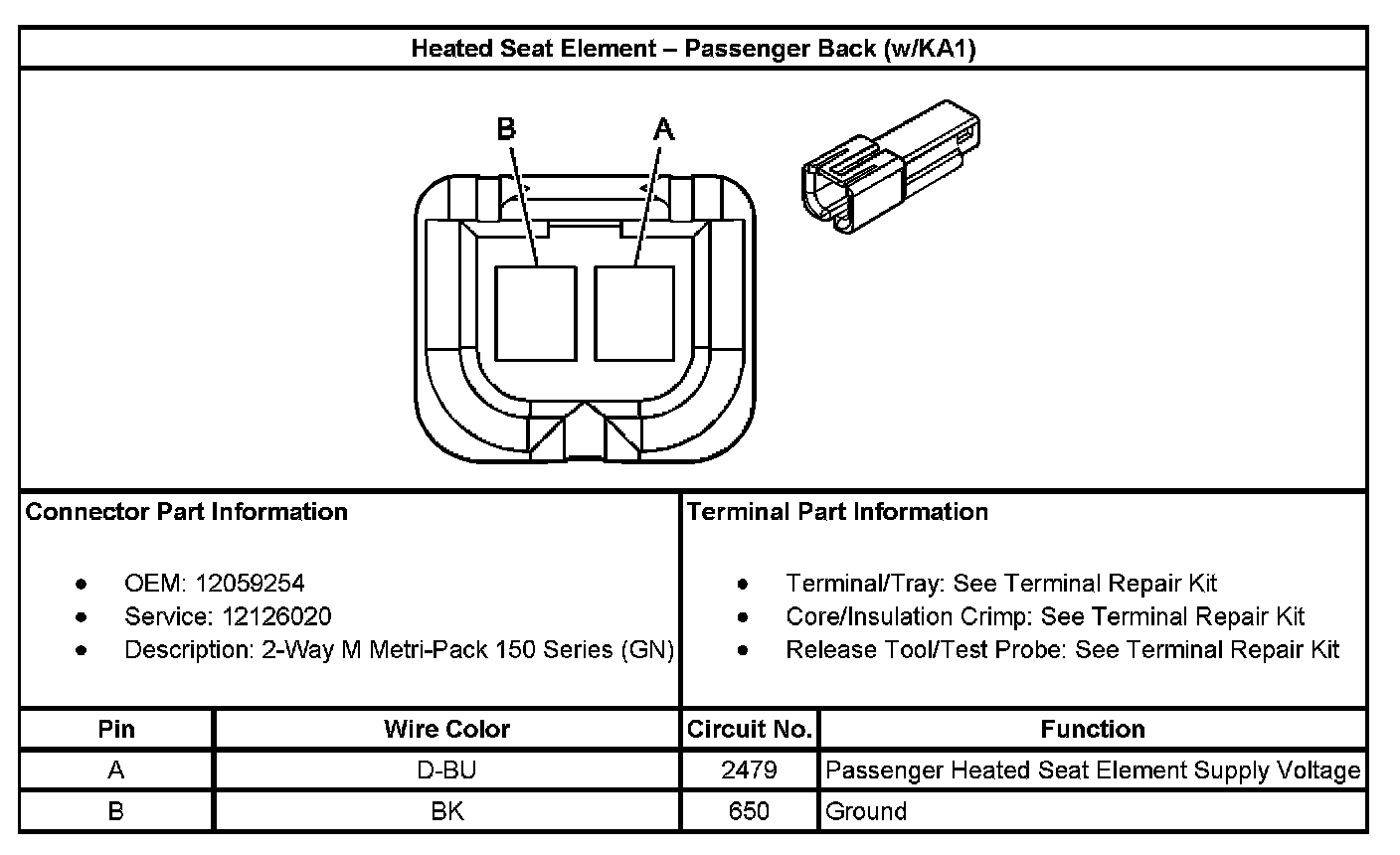

Heated Seat Element - Passenger Back (With RPO Code KA1):
Heated Seat Element - Passenger Cushion (With RPO Code KA1):
