Home
>>
Cadillac
>>
2006
>>
STS-V V8-4.4L SC VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C107
C107

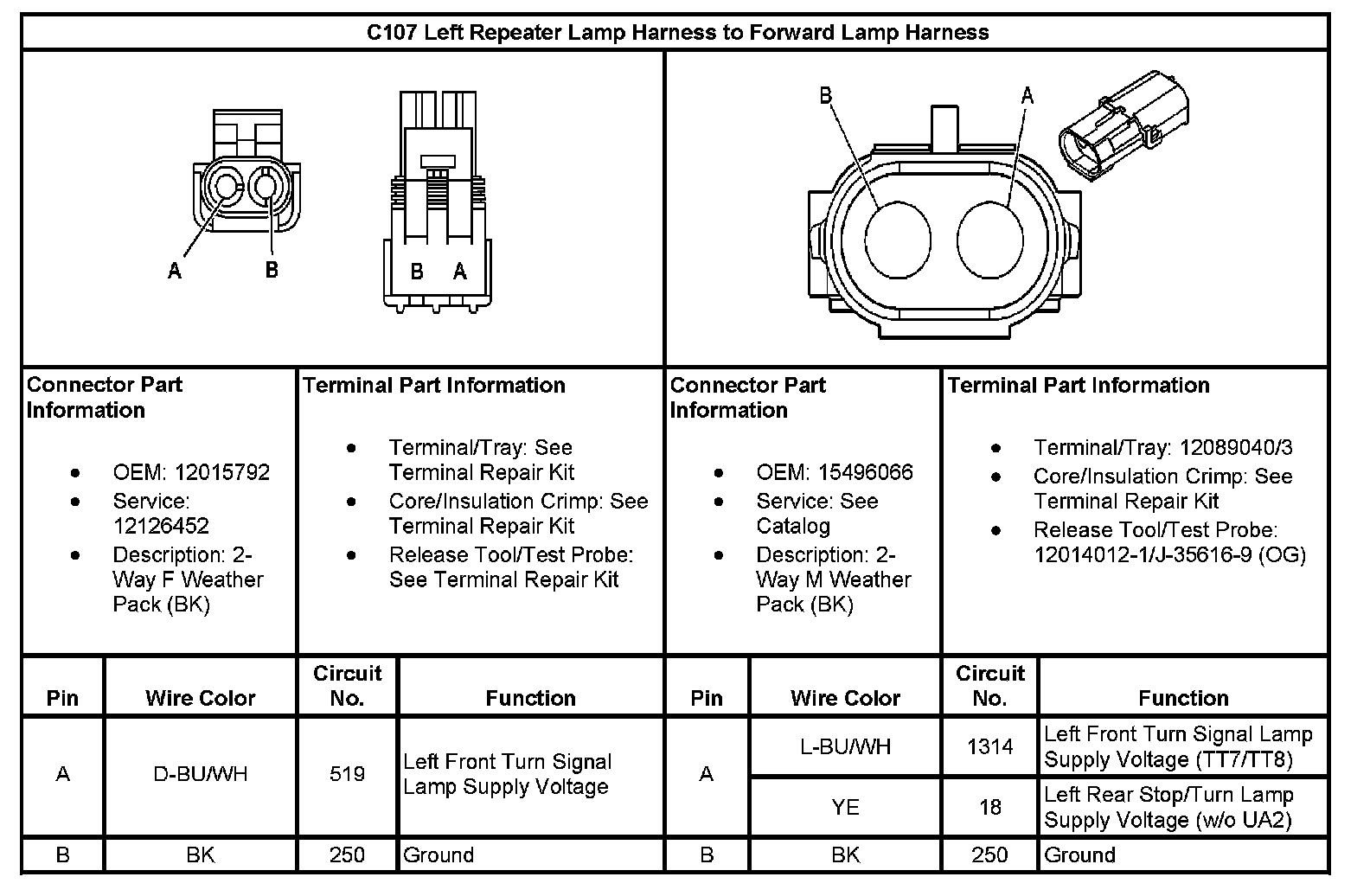

C107 Left Repeater Lamp Harness To Forward Lamp Harness:
