Cadillac
>>
2006
>>
STS-V V8-4.4L SC VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Level Sensor
>>
Fuel Pump and Sender Assembly
Fuel Pump and Sender Assembly

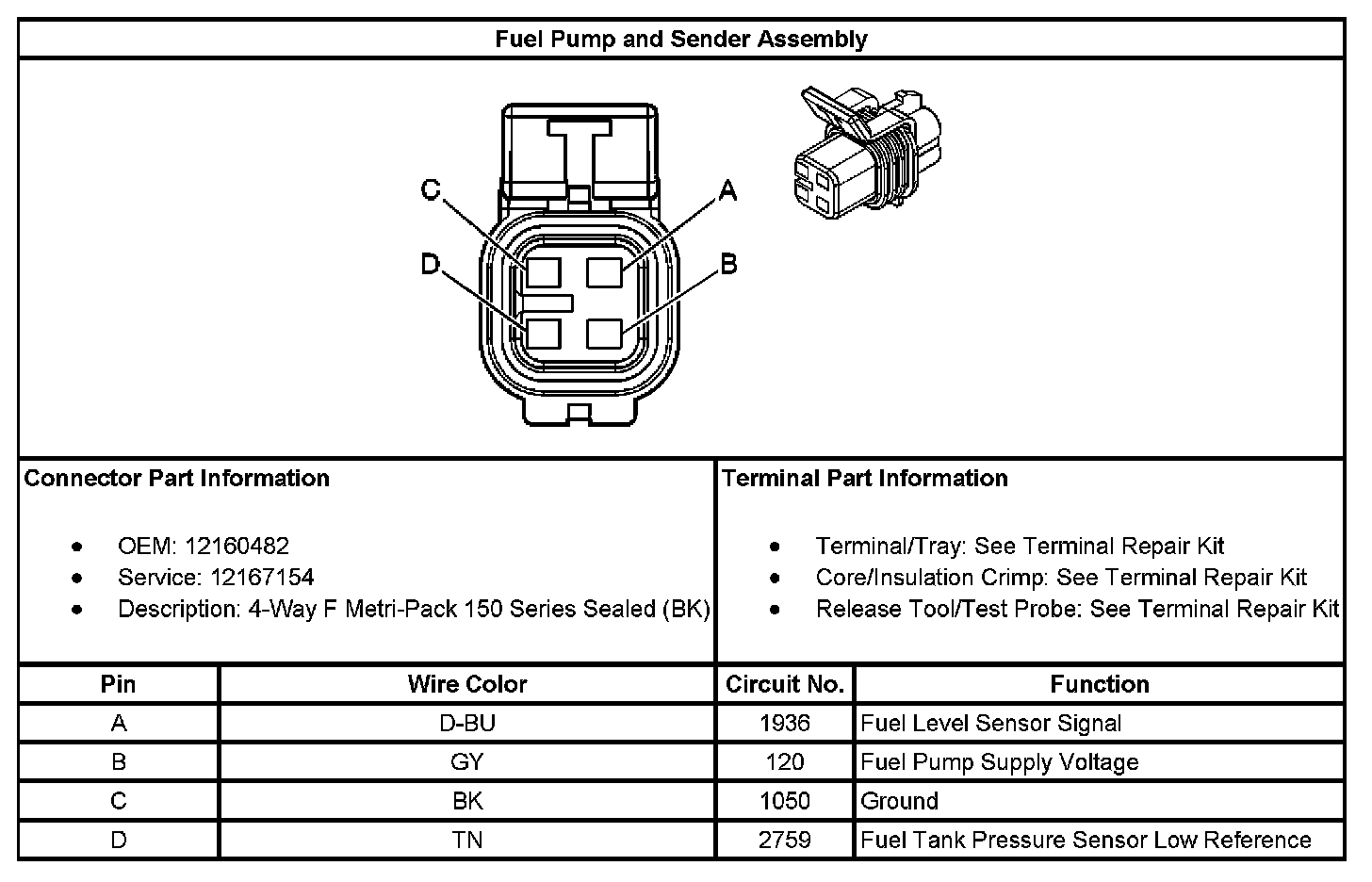

Fuel Pump And Sender Assembly:
