Instrument Cluster Head Up Display Replacement

INSTRUMENT CLUSTER HEAD UP DISPLAY REPLACEMENT

REMOVAL PROCEDURE
1. Remove the instrument panel (I/P) retainer.

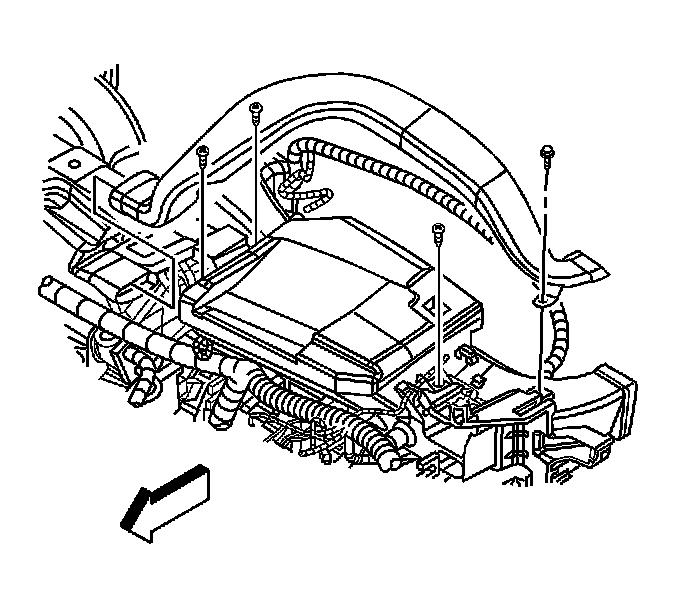

2. Remove the screws securing the heads up display to the I/P.
3. Disconnect the electrical connectors.

INSTALLATION PROCEDURE




1. Connect the electrical connectors.
2. Install the screws securing the heads up display to the I/P.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 2 N.m (18 lb in).

3. Install the I/P retainer.
