Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2006
>>
STS RWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C105
C105

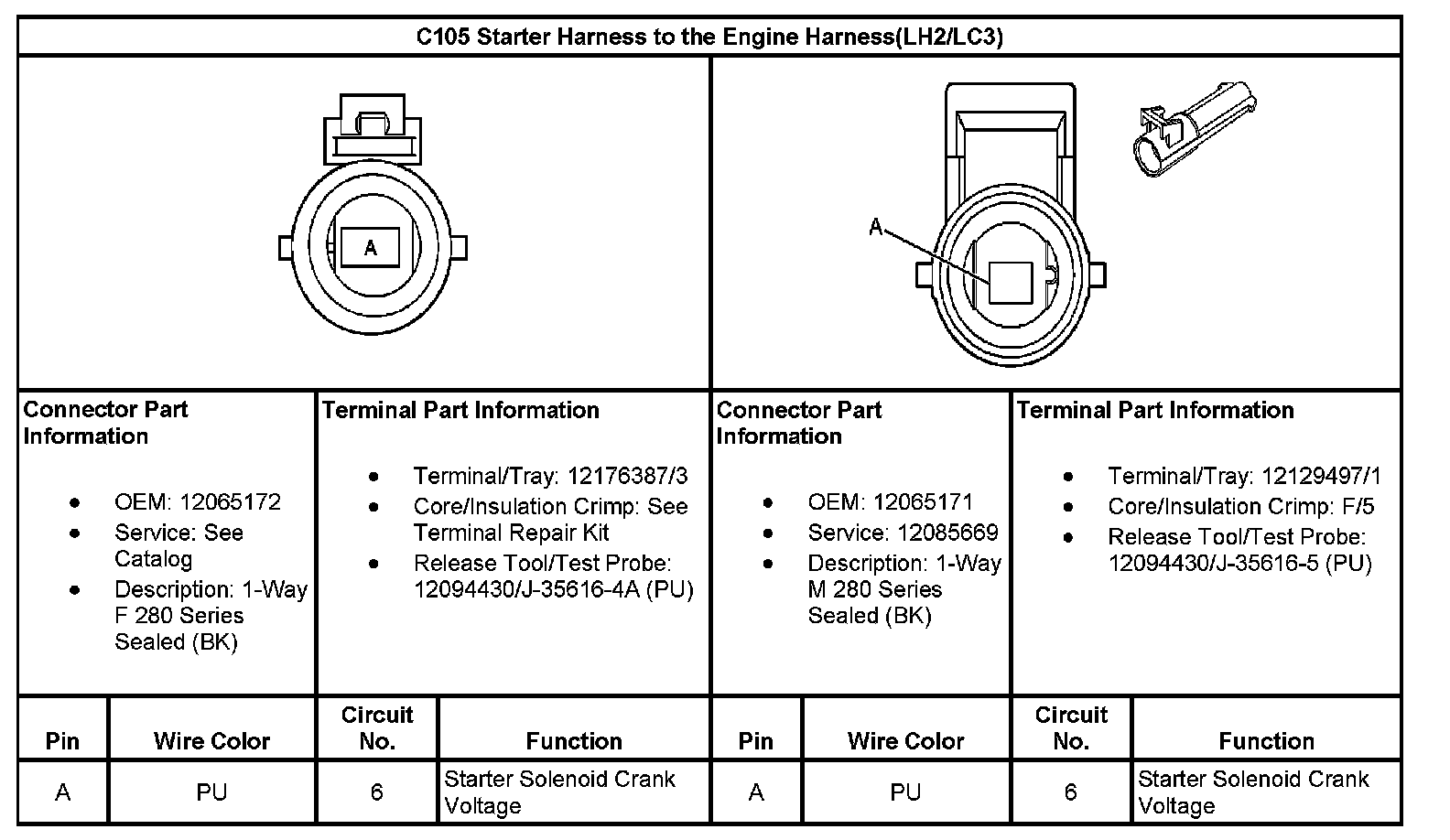

C105 Starter Harness To The Engine Harness:
