Garage Door Opener Transmitter: Service and Repair

GARAGE DOOR OPENER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the overhead console.

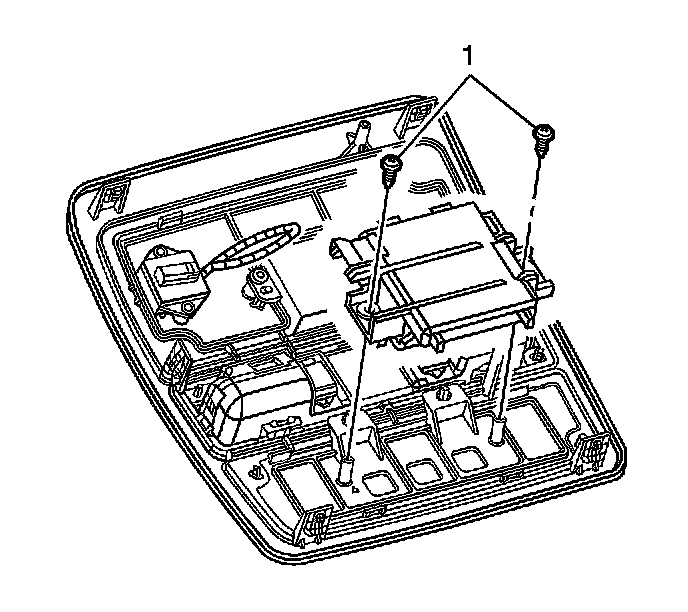

2. Remove the screws (1) securing the garage door opener to the overhead console.
3. Disconnect the electrical connector.

INSTALLATION PROCEDURE




1. Locate the garage door opener to the overhead console.
2. Install the screws (1) securing the garage door opener the overhead console.

Tighten the screws (1) to 2 N.m (18 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Connect the electrical connector.
4. Install the overhead console.
5. Refer to Control Module References for programming and setup information. Programming and Relearning
