Transmission Fluid Cooler Pipe Replacement - Rear

Transmission Fluid Cooler Pipe Replacement - Rear

Tools Required

J 44827 Transmission Cooler Quick Connect

Removal

1. Using the J 44827, disconnect the front transmission cooler line (TOC) from the rear TOC line.
2. Remove the left hand (LH) front wheel.
3. Remove the LF front splash shield retainers.
4. Remove the LF fornt slpash shields.
5. Using tool J 44827, disconnect the rear transmission oil cooler TOC lines from the radiator.

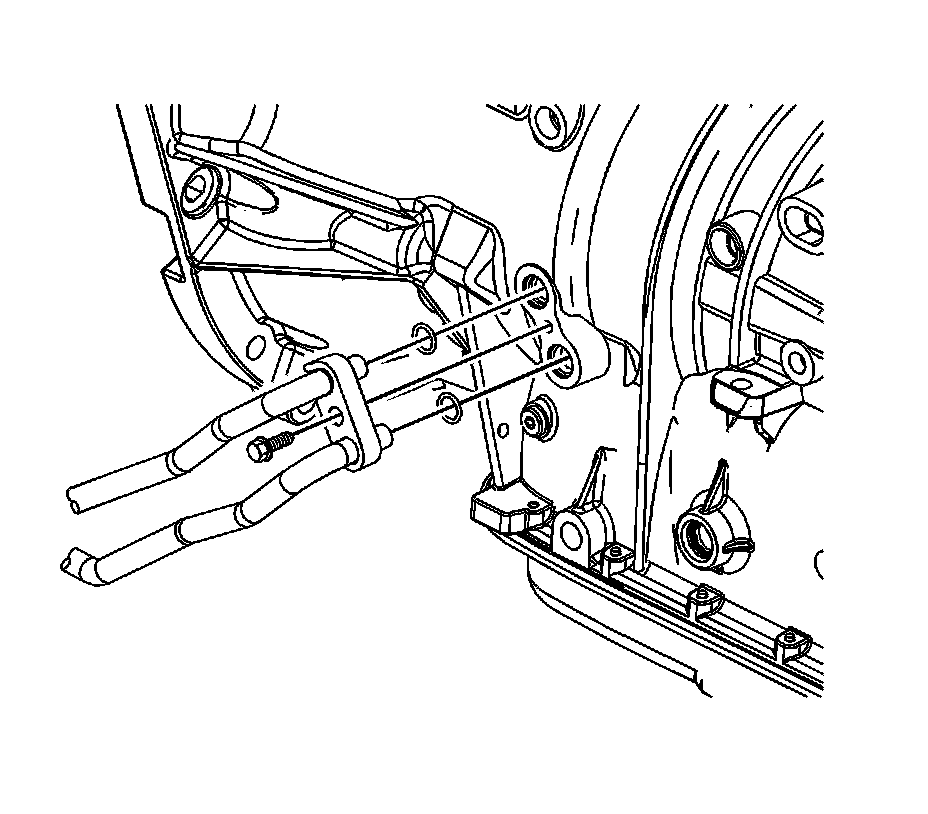

6. Remove the rear TOC line to transmission retainer bolt.
7. Disconnect the rear TOC lines from the transmission.
8. Remove and discard the O-rings.
9. Remove the TOC retainer bracket bolt.
10. Remove the TOC lines.

Installation

1. Install the TOC lines.

Notice: Refer to Fasterner Notice in Cautions and Notices

2. Install the TOC retainer bracket bolt.

Tighten
Tighten the bolt to 16 Nm (12 ft lbs)




3. Install new O-rings to the rear TOC lines.
4. Connect the rear TOC lines to the transmission.
5. Install the rear TOC line to the trransmission retainer bolt.

Tighten
Tighten the bolt to 25 Nm (18 ft lbs)

6. Connect the rear TOC line to the front TOC line.
7. Connect the rear TOC line to thee radiator.
8. Install the LH front splash shield.
9. Install the LH front splash shield retainers.
10. Install the LH front wheel.
