Transmission Fluid Cooler Pipe Replacement - Front

Transmission Fluid Cooler Pipe Replacement - Front

^ Tools Required
- J 44827 Transmission Cooler Quick Connect

Removal Procedure





1. Important: It is not necessary to discharge the refrigerant from the A/C system during auxiliary transmission oil cooler (TOC) front line replacement.

Remove the A/C condenser mounting bolts and reposition the condenser.

Reposition the condenser to access the auxiliary transmission oil cooler lines.
2. Disconnect the transmission oil cooler (TOC) lines from the TOC.
3. Disconnect the TOC line from the TOC retainer clip (1).

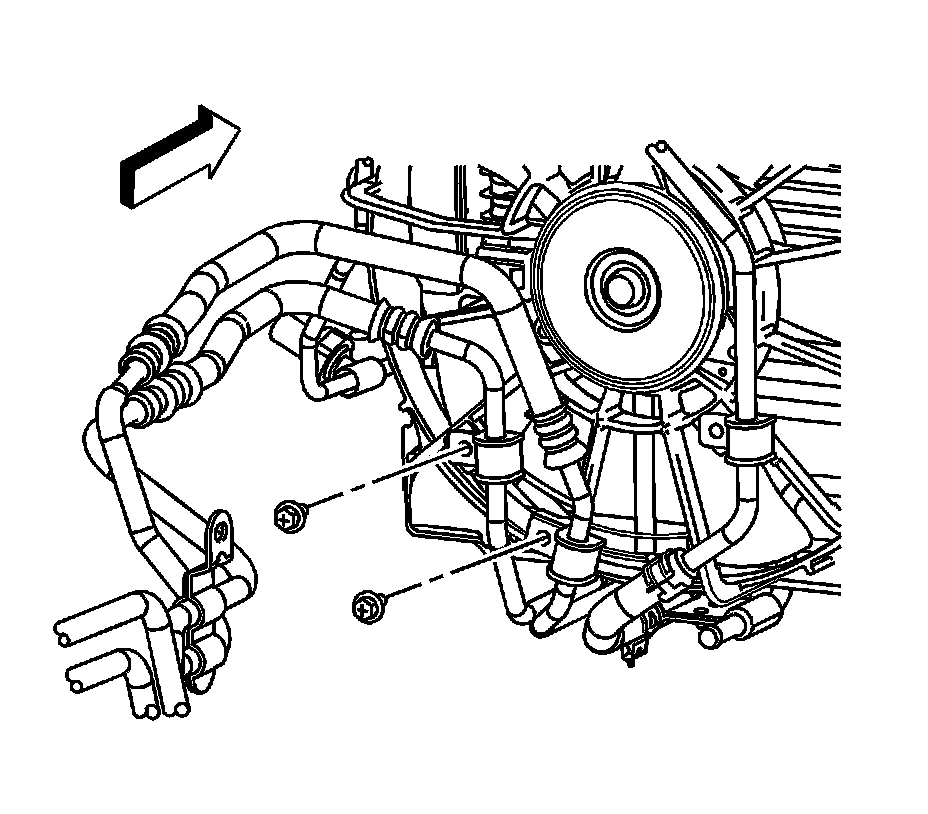

4. Remove the bolts that connect the TOC to the cooling fan shroud.





5. Remove the LH front wheel. Refer to Tire and Wheel Removal and Installation.
6. Remove the LH front splash shield retainers.
7. Remove the LH front splash shield.

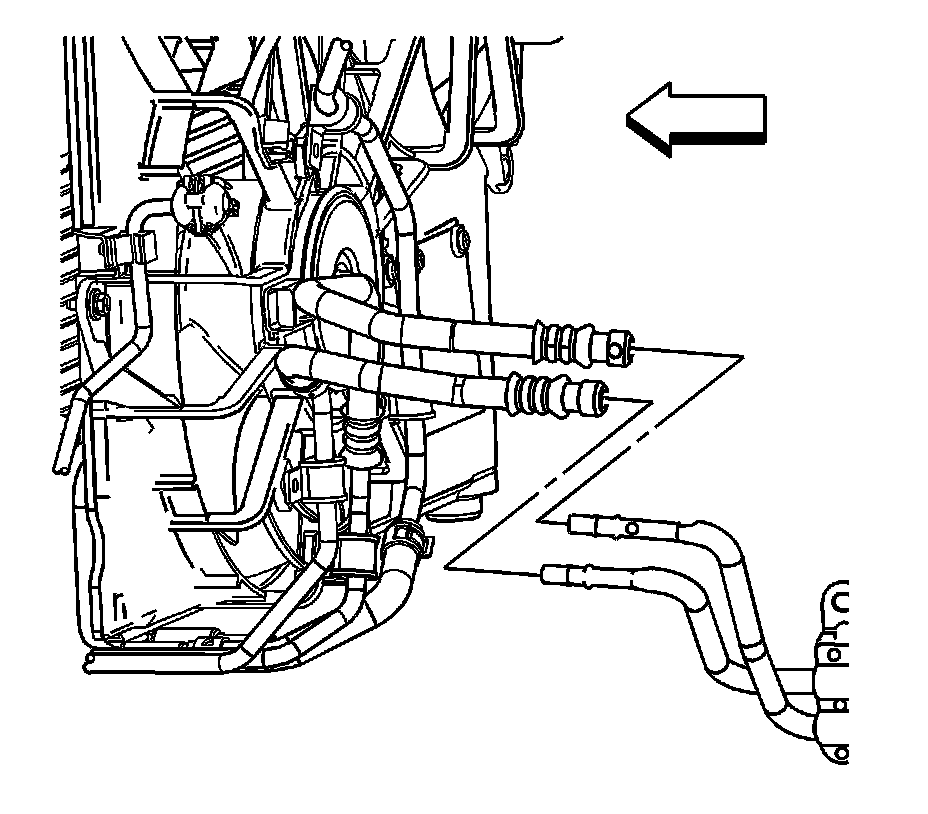

8. Using J 44827, disconnect the front TOC lines from the rear TOC lines.
9. Remove the front TOC lines.

Installation Procedure
1. Install the front TOC lines.
2. Connect the front TOC lines to the rear TOC lines.
3. Install the LH front splash shield.
4. Install the LH front splash shield retainers.





5. Install the LH front wheel. Refer to Tire and Wheel Removal and Installation.





6. Notice: Refer to Fastener Notice in Service Precautions.

Install the bolts that secure the TOC to the cooling fan shroud.

Tighten the bolts to 6.5 Nm (58 inch lbs.).





7. Connect the TOC line to the TOC retainer clip (1).
8. Connect the TOC lines to the TOC.

Tighten the fittings to 20 Nm (15 ft. lbs.).
9. Reposition and reinstall the condenser.
