Power Steering Pump Bracket Replacement

Power Steering Pump Bracket Replacement (LY7)
Removal Procedure
1. Remove the power steering pump.

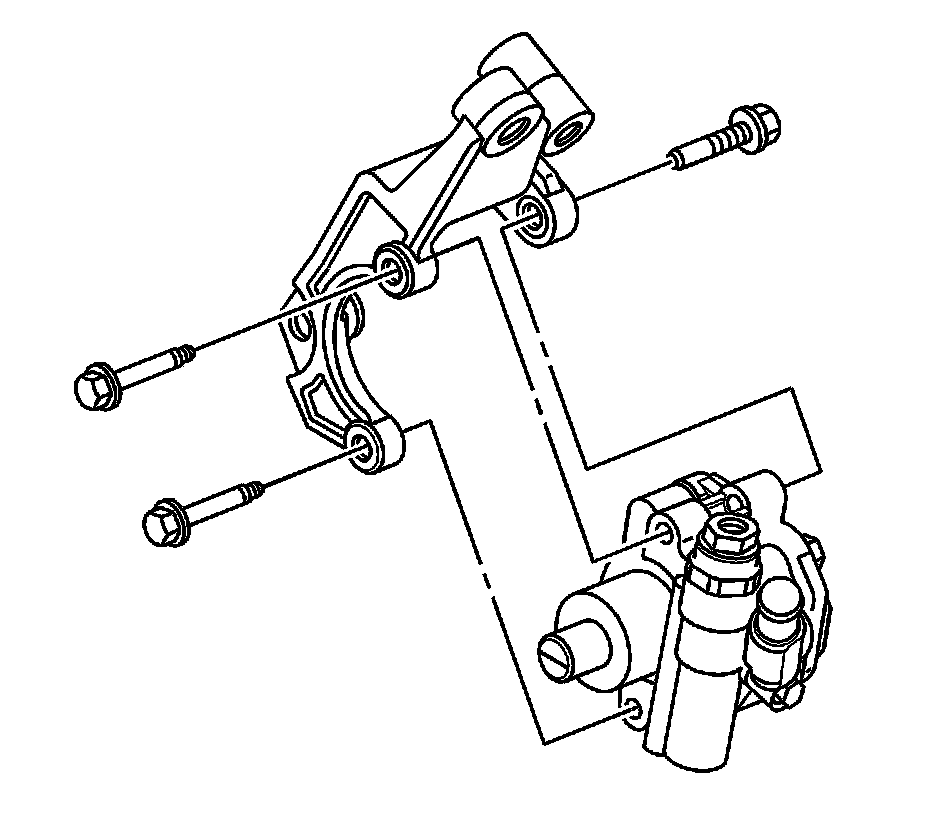

2. Remove the power steering pump to bracket bolts.
3. Separate the power steering pump from the power steering pump bracket.

Installation Procedure





1. Install the power steering pump to the power steering bracket.

2. Install the Power steering pump to power steering pump bracket bolts.
Tighten the bolts to 25 Nm (18 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the power steering pump.
