Power Steering Cooler Pipe/Hose Replacement

Power Steering Cooler Pipe/Hose Replacement
Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the front air deflector.

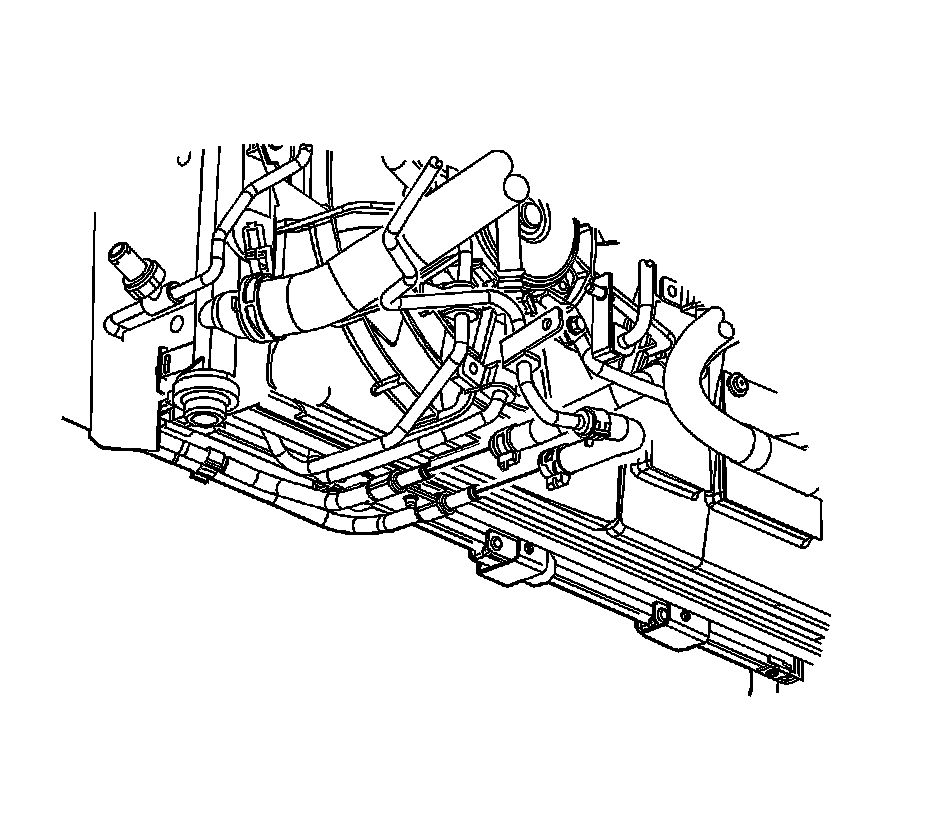

3. Disconnect the power steering cooler pipe/hose from the power steering lines.





4. Remove the power steering cooler pipe/hose to frame retaining bolt.
5. Lower the vehicle.

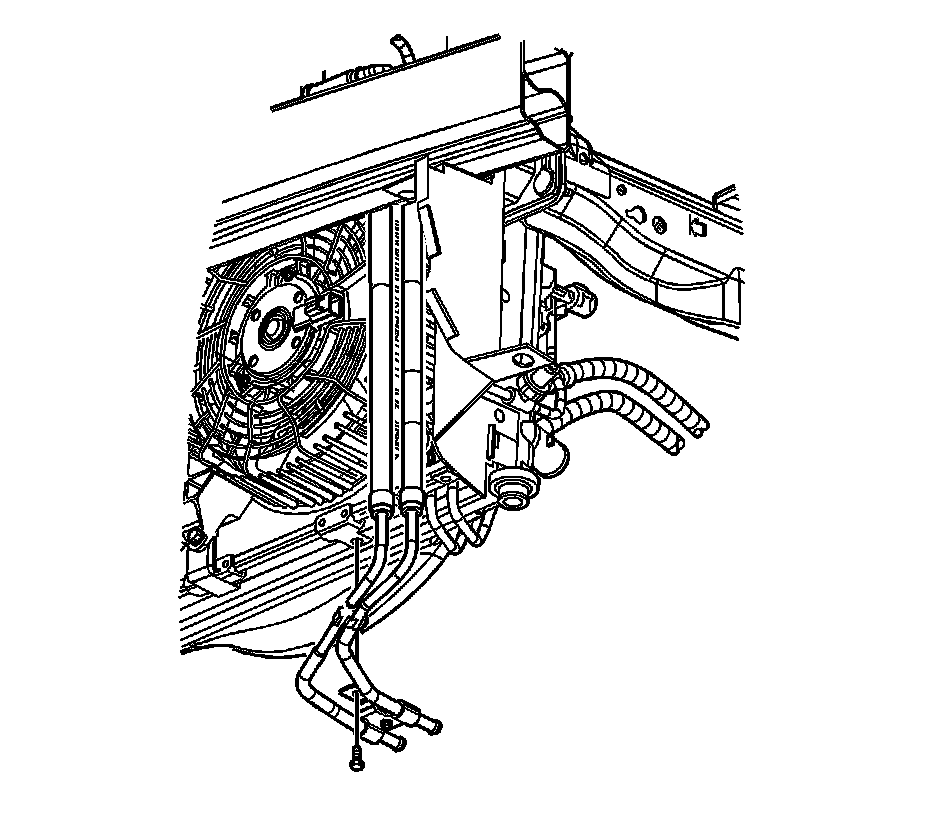

6. Disconnect the power steering cooler pipe/hose from the power steering cooler.
7. Remove the power steering cooler pipe/hose from the vehicle.

Installation Procedure





1. Position the power steering cooler pipe/hose to the vehicle.
2. Connect the power steering cooler pipe/hose to the power steering cooler.





3. Install the power steering cooler pipe/hose to frame retaining bolt.
Tighten the bolts to 4 Nm (35 inch lbs.).

Notice: Refer to Fastener Notice in Service Precautions.






4. Connect the power steering cooler pipe/hose to the power steering lines.
5. Install the front air deflector.
6. Lower the vehicle.
7. Remove the drain pan from under the vehicle.
8. Bleed the power steering system.
