Head Up Display (HUD) Inoperative



HEAD UP DISPLAY (HUD) INOPERATIVE

HUD INOPERATIVE

HUD Diagnostic System Check assumes the technician checked that the HUD battery voltage circuit is good.

TEST

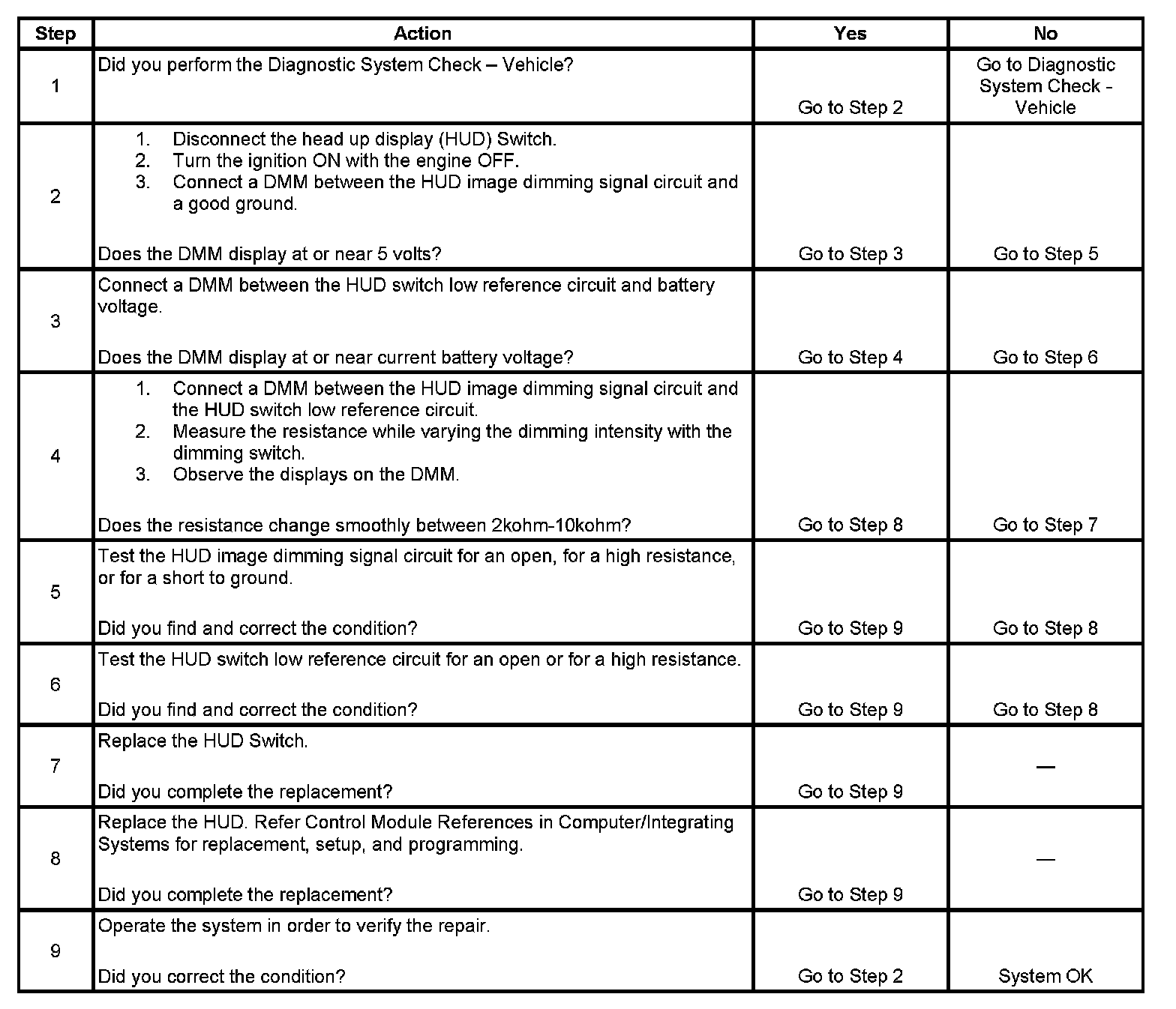

Step 1 - Step 9:
