Cadillac
>>
2006
>>
STS AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ride Height Sensor, Suspension Control
>>
Suspension Position Sensor - LF
Suspension Position Sensor - LF

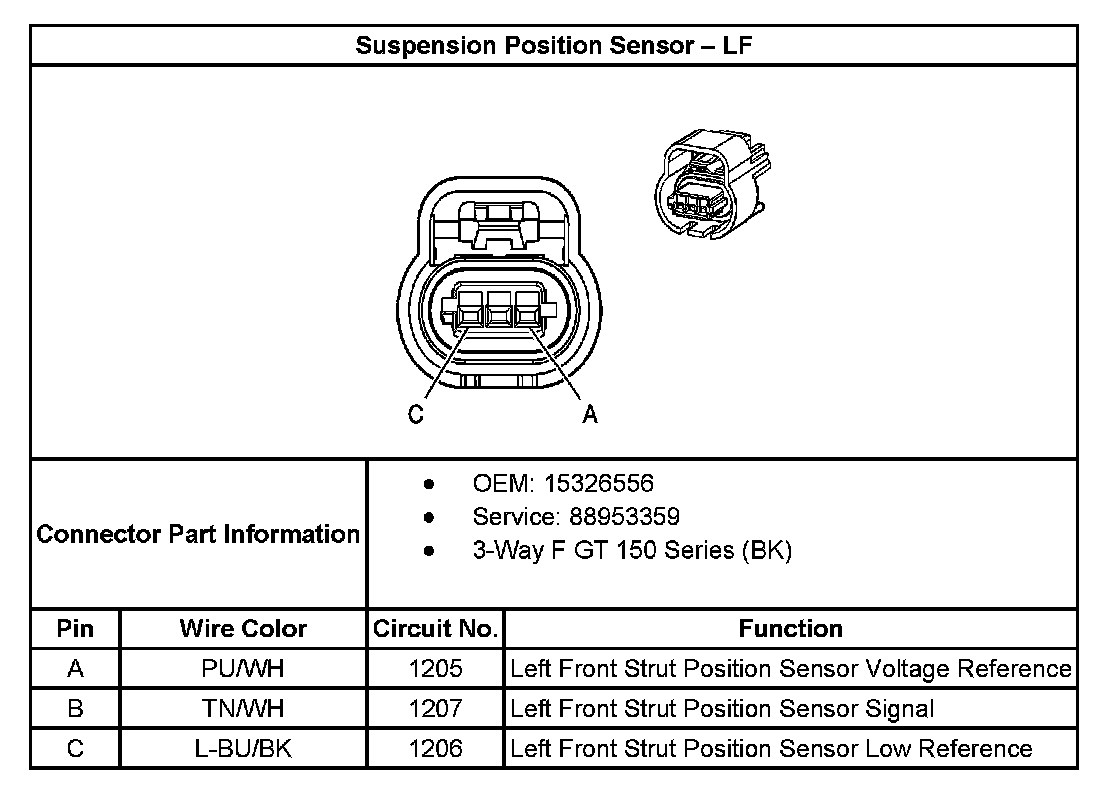

Suspension Position Sensor - LF:
