Home
>>
Cadillac
>>
2006
>>
STS AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C300 - C399
>>
C301
C301

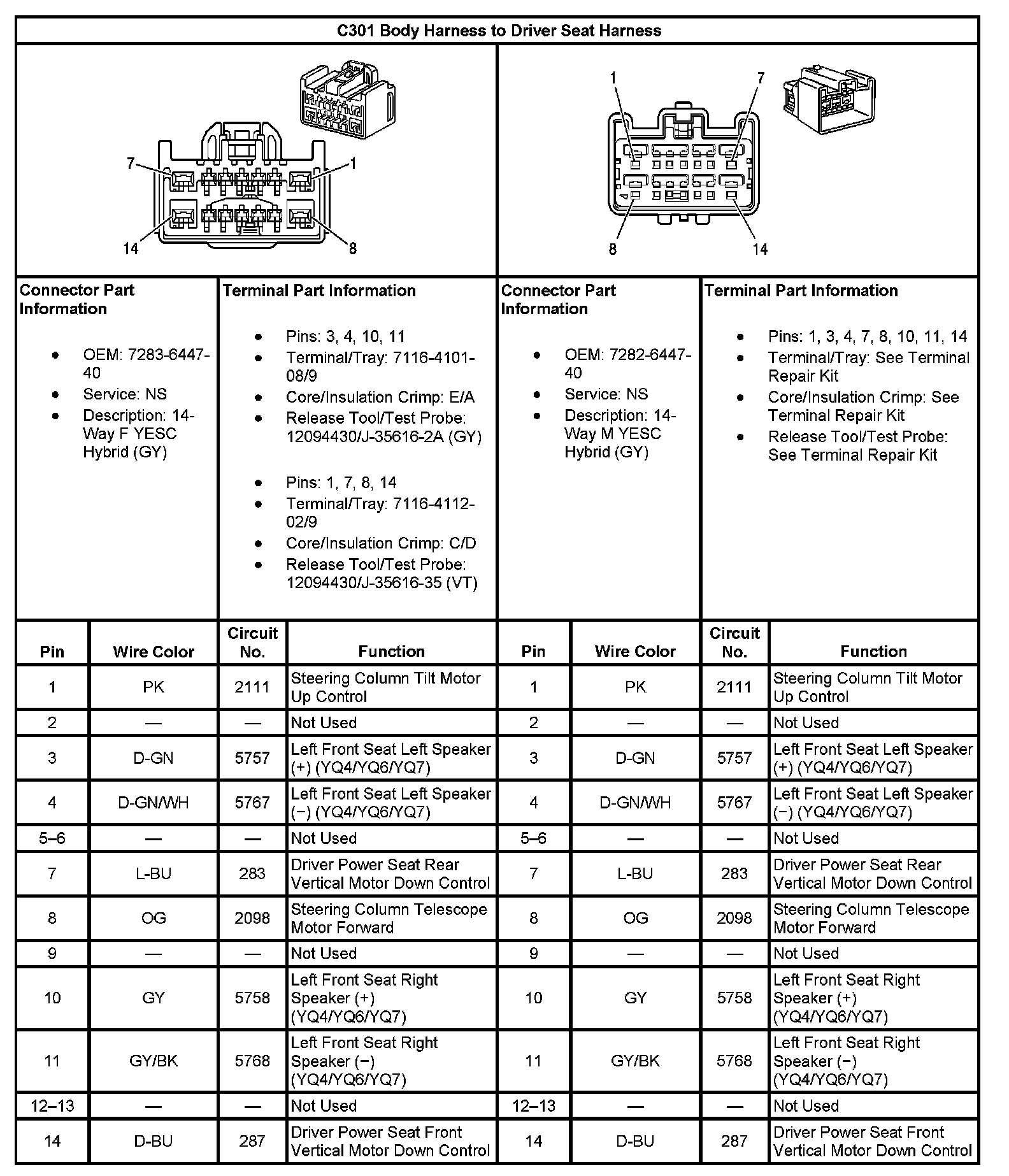

C301 Body Harness To Driver Seat Harness:
