Home
>>
Cadillac
>>
2006
>>
STS AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C200 - C299
>>
C276
C276

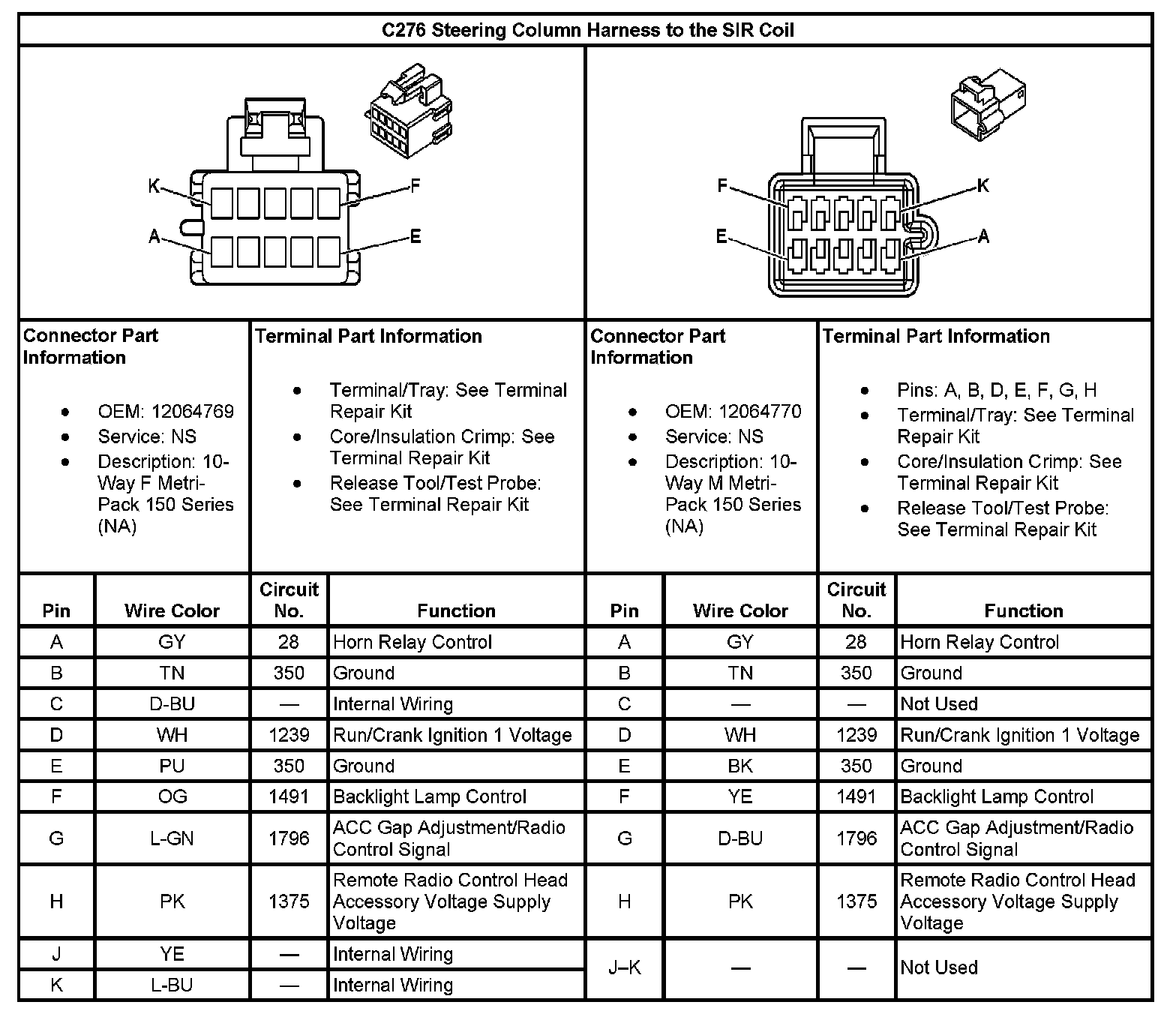

C276 Steering Column Harness To The SIR Coil:
