Rear Parking Assist (RPA) Display
Rear Parking Assist (RPA) Display

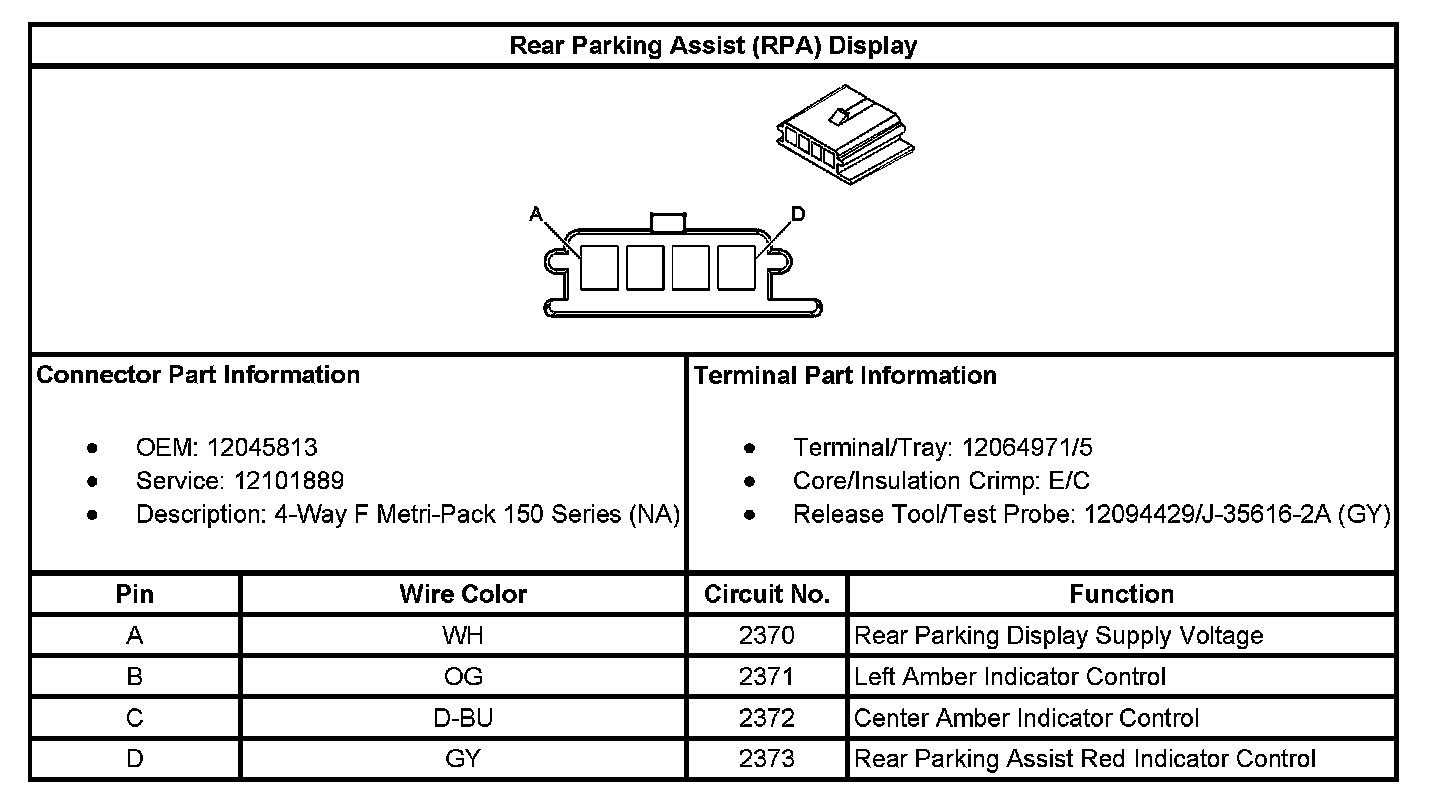

Rear Parking Assist (RPA) Display:
