Home >> Cadillac >> 2006 >> STS AWD V6-3.6L VIN 7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Control Module, A/T >> 6L80-E - Automatic Transmission >> TU/TD Assembly Harness J4

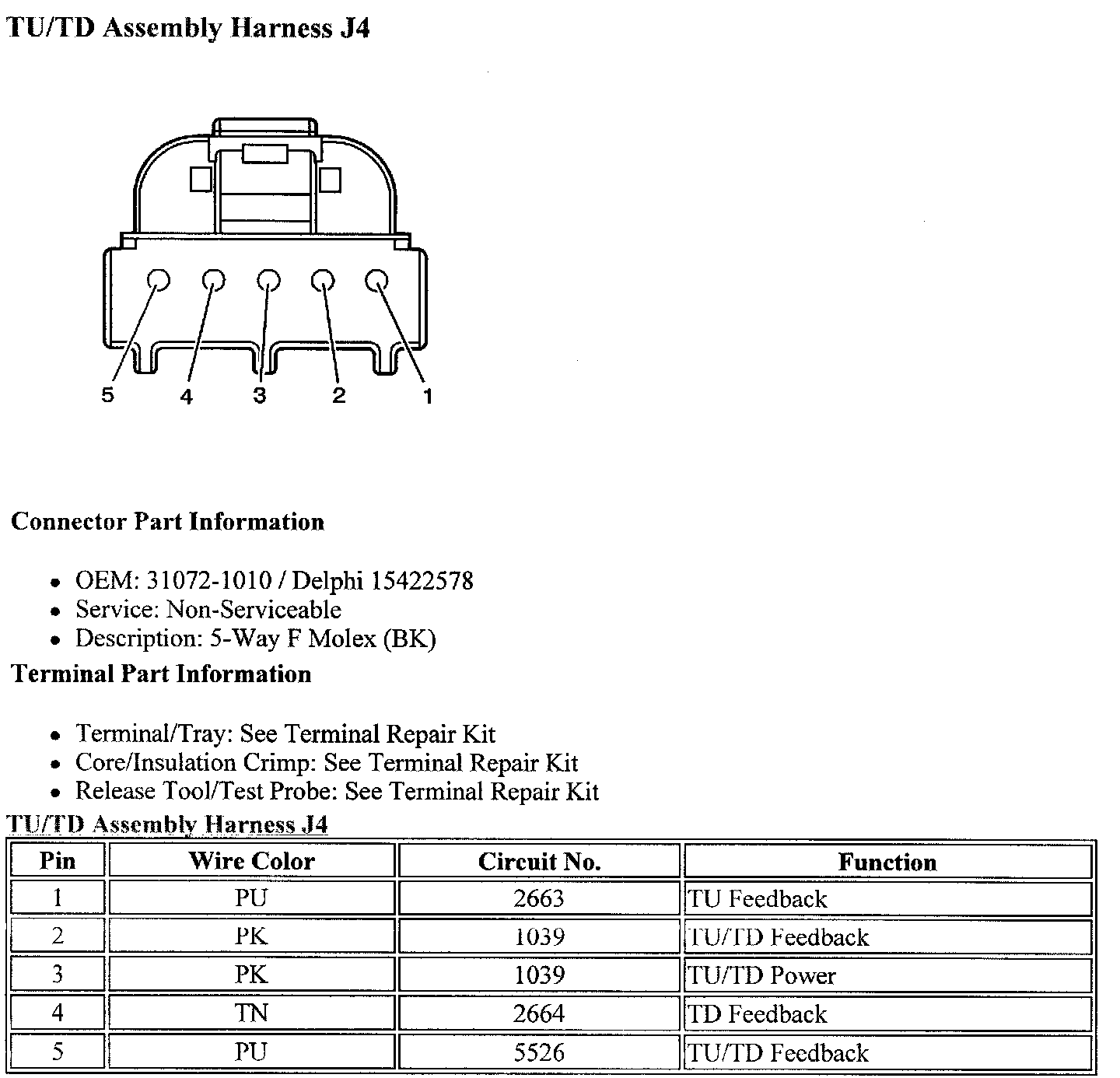

TU/TD Assembly Harness J4
