Speaker Replacement - Front Upper

SPEAKER REPLACEMENT - FRONT UPPER

REMOVAL PROCEDURE
1. Remove the instrument panel (I/P) defroster grille.

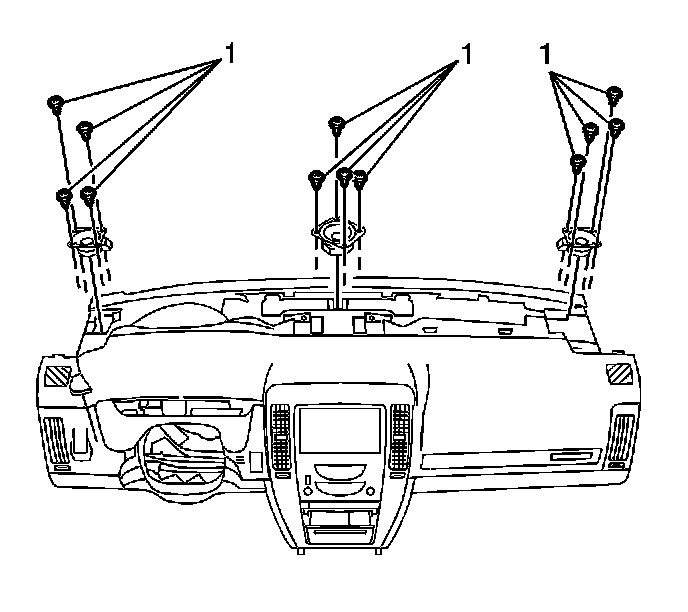

2. Remove the screws (1) securing the speaker to the I/P.
3. Disconnect the electrical connectors.

INSTALLATION PROCEDURE




1. Connect the electrical connectors.
2. Install the screws (1) securing the speaker to the I/P.

Tighten the screws (1) to 2 N.m (18 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the instrument panel defroster grille.
