Radio Front Floor Console Speaker Replacement

RADIO FRONT FLOOR CONSOLE SPEAKER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the center floor console end panel.

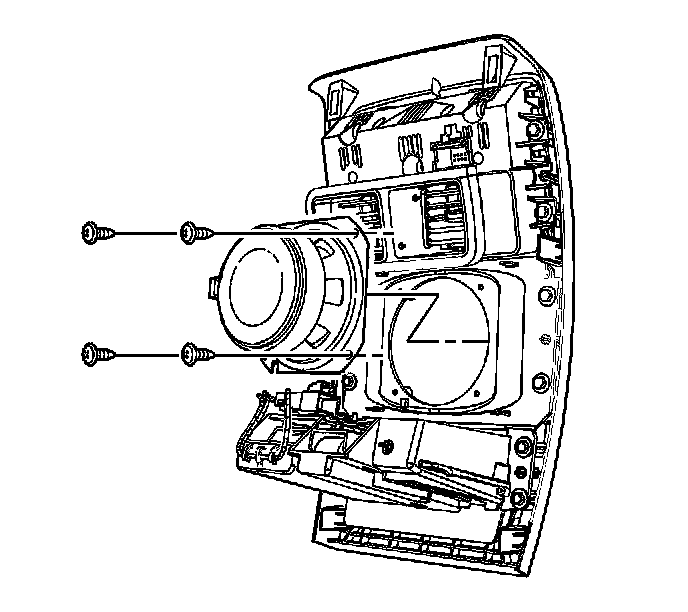

2. Remove the screws securing the speaker to the console end panel.
3. Disconnect the electrical connector.

INSTALLATION PROCEDURE




1. Connect the electrical connector.
2. Install the screws securing the speaker to the end panel.

Tighten the screws to 2 N.m (18 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the center floor console end panel.
