Automatic Volume Control: Service and Repair

AUXILIARY AUDIO/VIDEO INPUT CONTROL REPLACEMENT

REMOVAL PROCEDURE

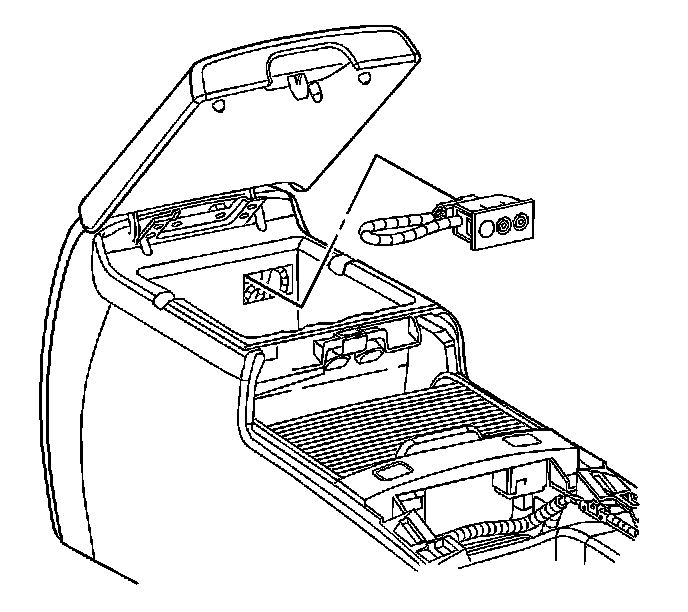

1. Use a flat blade tool in order to pry out the audio video jack from the center floor console bin.
2. Disconnect the electrical connector.

INSTALLATION PROCEDURE




1. Disconnect the electrical connector.
2. Push the audio video jack into the center floor console bin in order to secure the locking tabs on the jack.
