Amplifier: Service and Repair

AMPLIFIER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the rear compartment trim.

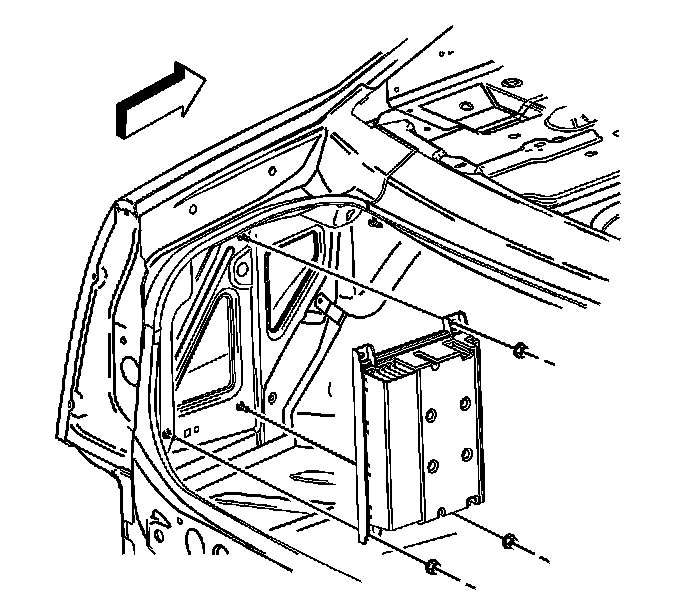

2. Remove the bolts securing the amplifier to the vehicle.
3. Disconnect the electrical connectors.
4. Remove the amplifier.

INSTALLATION PROCEDURE




1. Connect the electrical connectors.
2. Install the bolts securing the amplifier to the vehicle.

Tighten the bolts (1) to 9 N.m (80 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the rear compartment trim.
4. Refer to Control Module References for programming and setup information. Programming and Relearning
