Power Seat Motor
>>
Seat Lumbar Horizontal Motor
Seat Lumbar Horizontal Motor

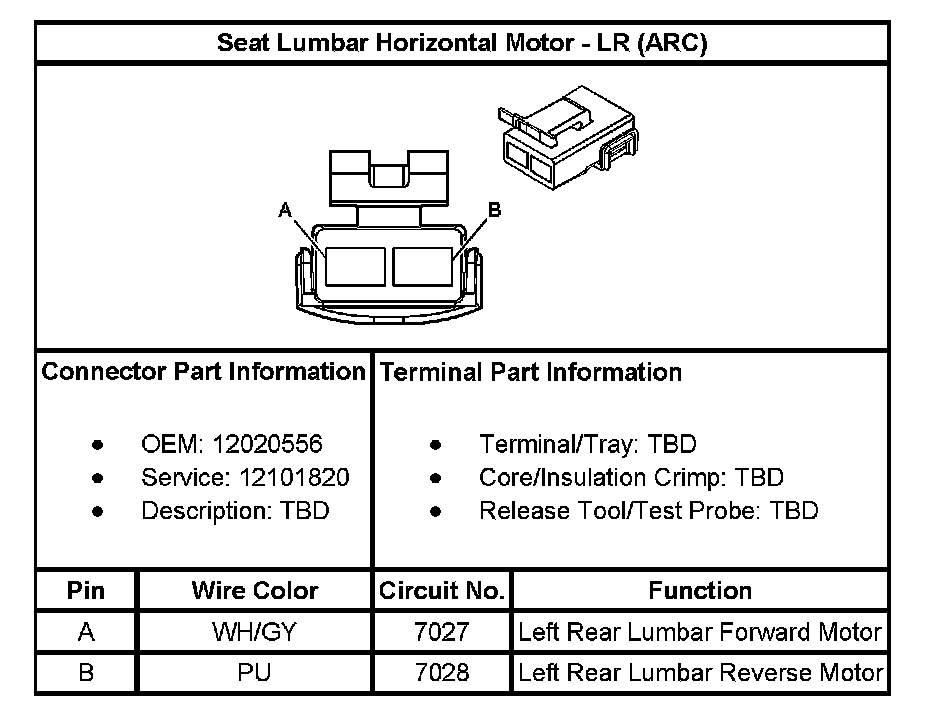

Seat Lumbar Horizontal Motor - LR (With RPO Code ARC):

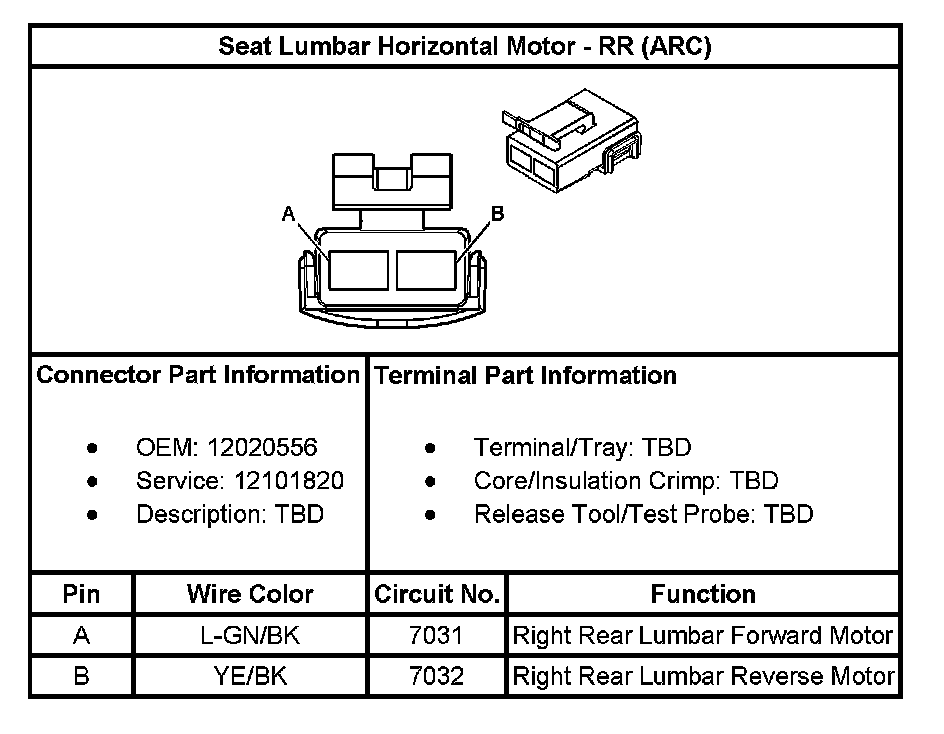

Seat Lumbar Horizontal Motor - RR (With RPO Code ARC):
