Seat Adjuster Motor Assembly

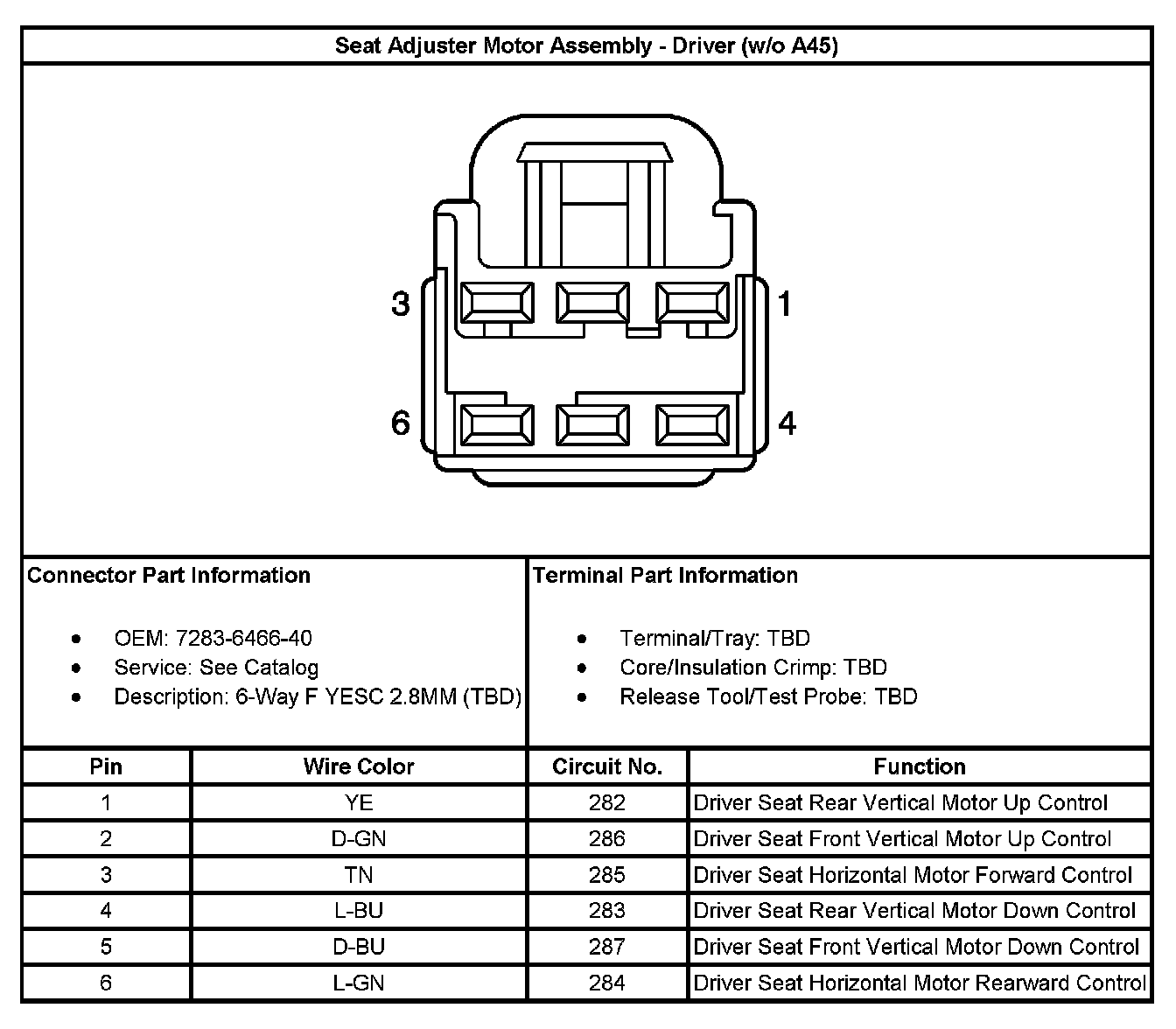

Seat Adjuster Motor Assembly - Driver (Without RPO Code A45):



Seat Adjuster Motor Assembly - Driver C1 (With RPO Code AG1, A45):

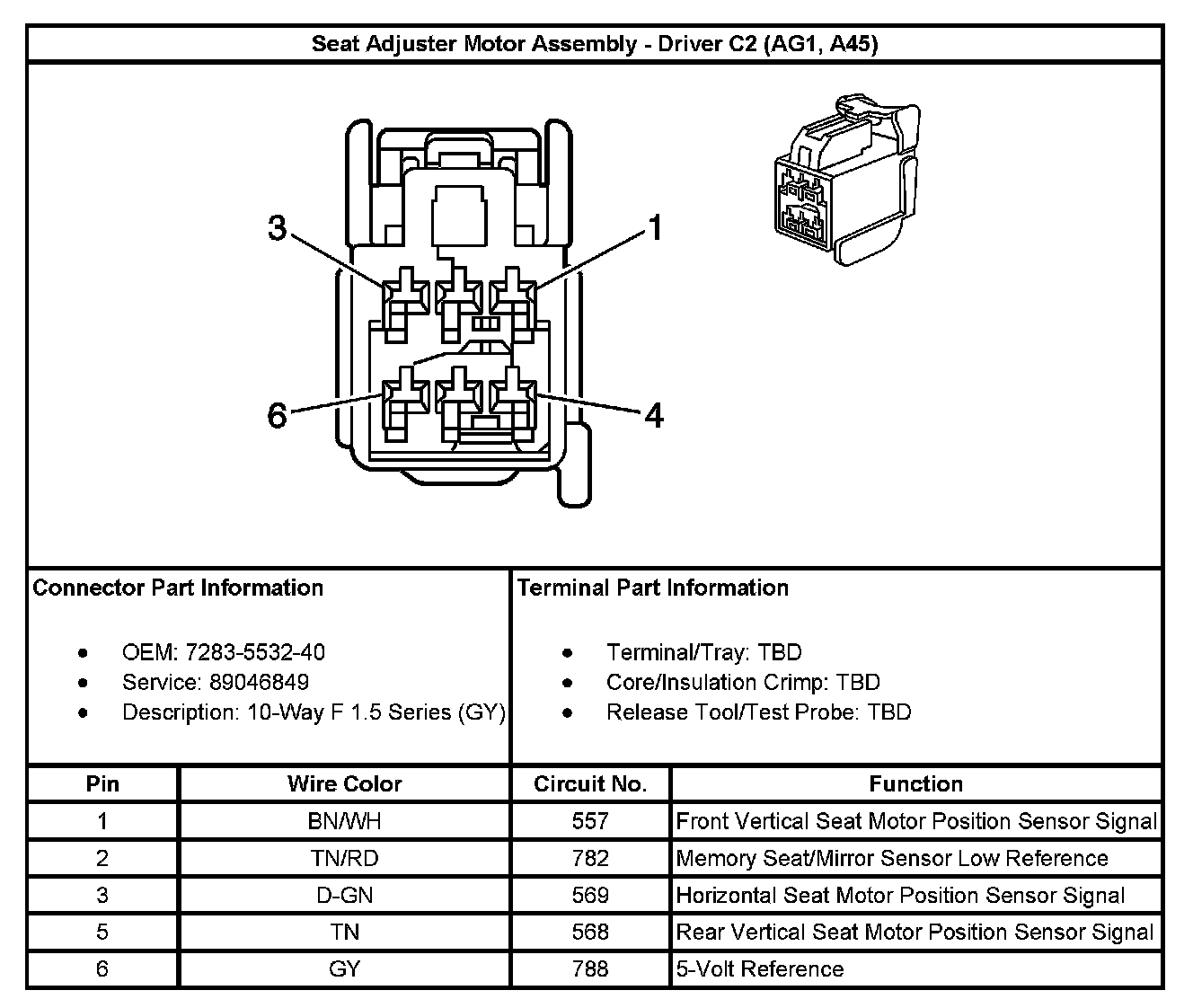

Seat Adjuster Motor Assembly - Driver C2 (With RPO Code AG1, A45):



Seat Adjuster Motor Assembly - Front Passenger (With RPO Code AG1):

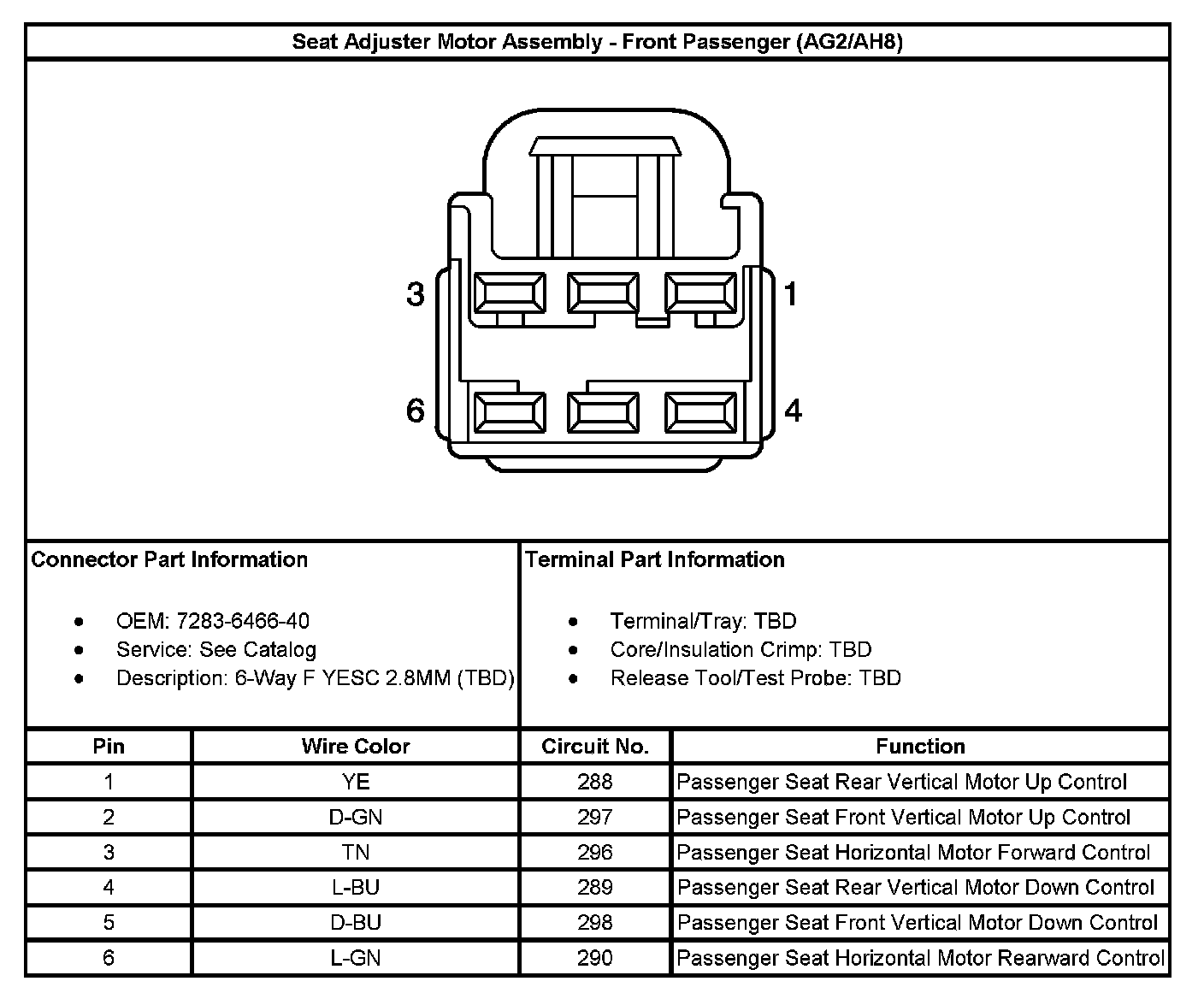

Seat Adjuster Motor Assembly - Front Passenger (With RPO Code AG2/AH8):
