Courtesy Lamp - Right Rear
Courtesy Lamp - Right Rear

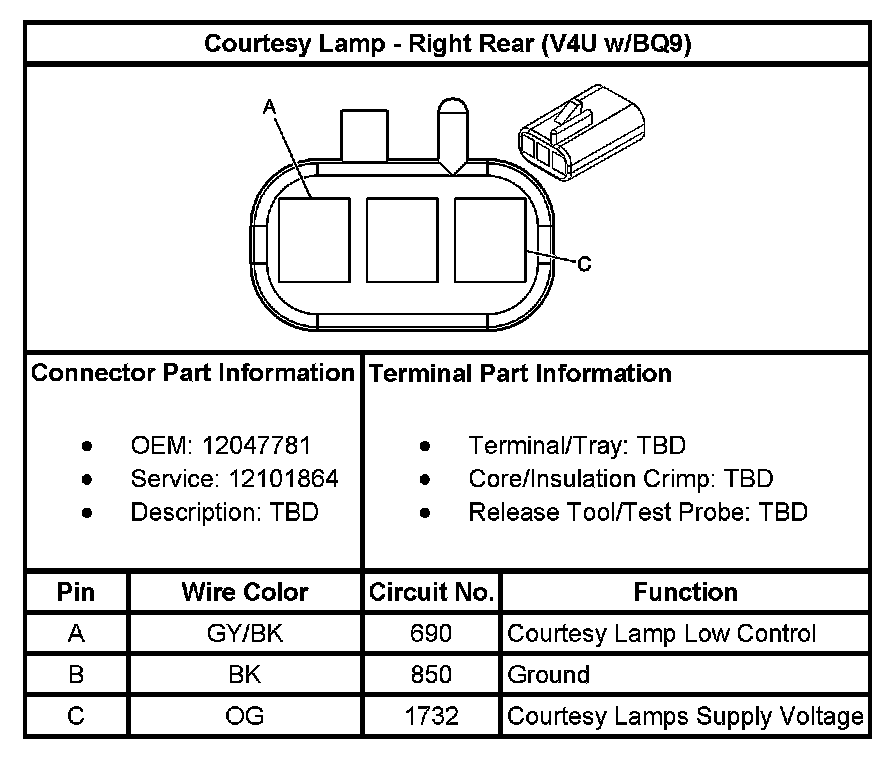

Courtesy Lamp - Right Rear (With RPO Code V4U/BQ9):

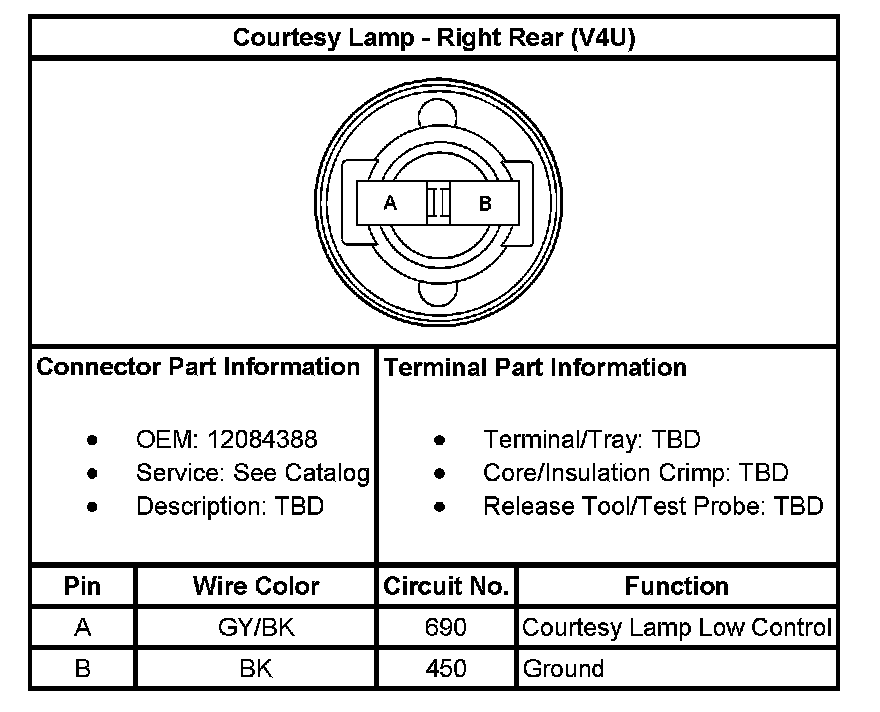

Courtesy Lamp - Right Rear (With RPO Code V4U):
