Courtesy Lamp
>>
System Diagram
>>
Courtesy Lamp - Left Rear
Courtesy Lamp - Left Rear

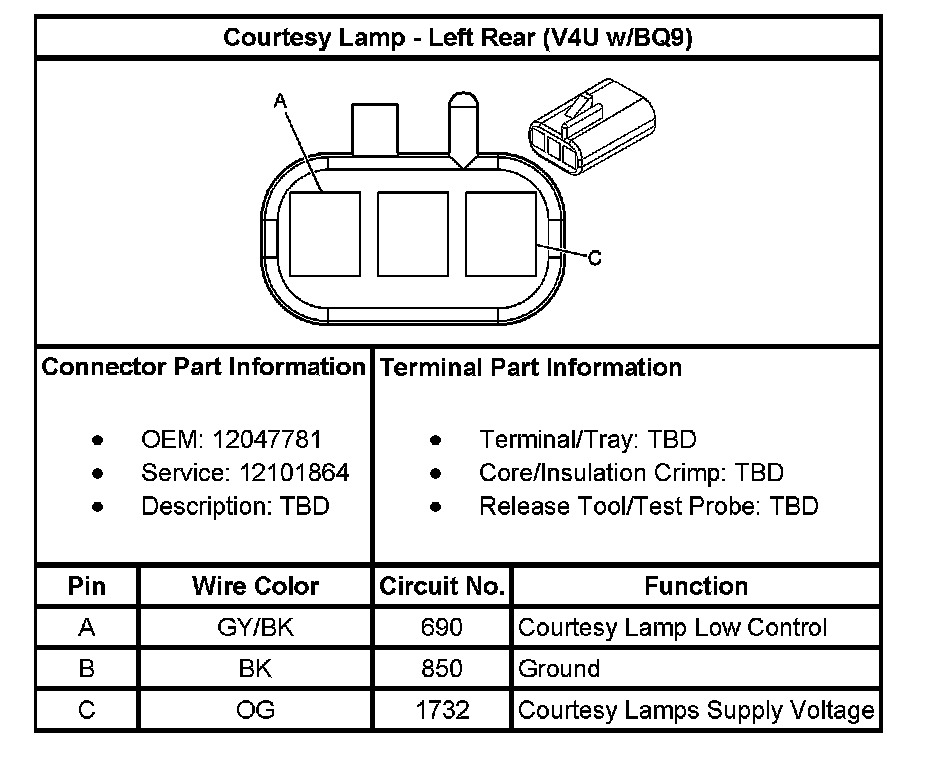

Courtesy Lamp - Left Rear (With RPO Code V4U/BQ9):

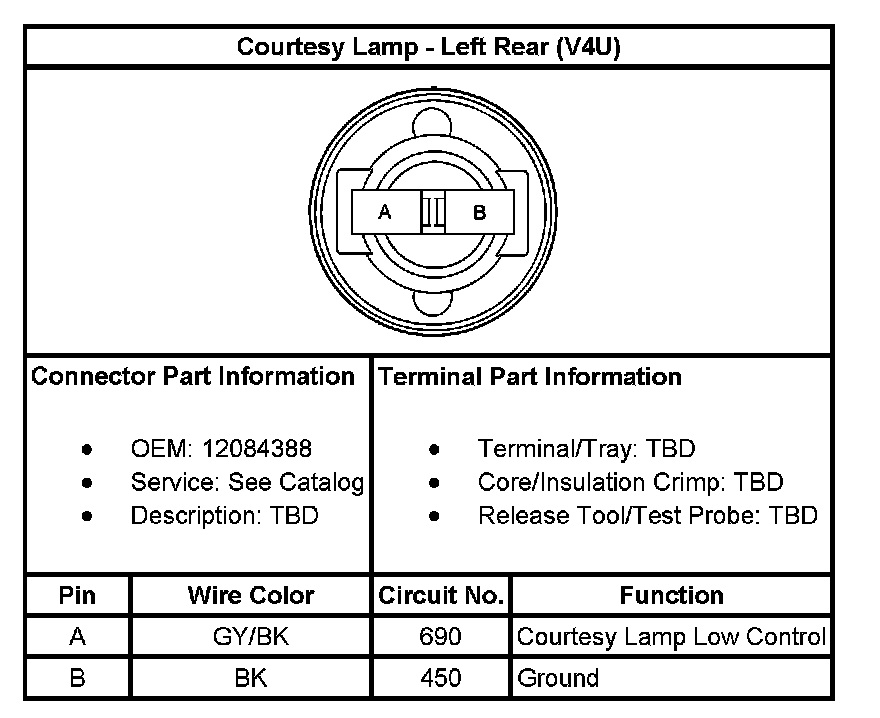

Courtesy Lamp - Left Rear (With RPO Code V4U):
