Home >> Cadillac >> 2006 >> DTS V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antenna, Radio

Antenna, Radio

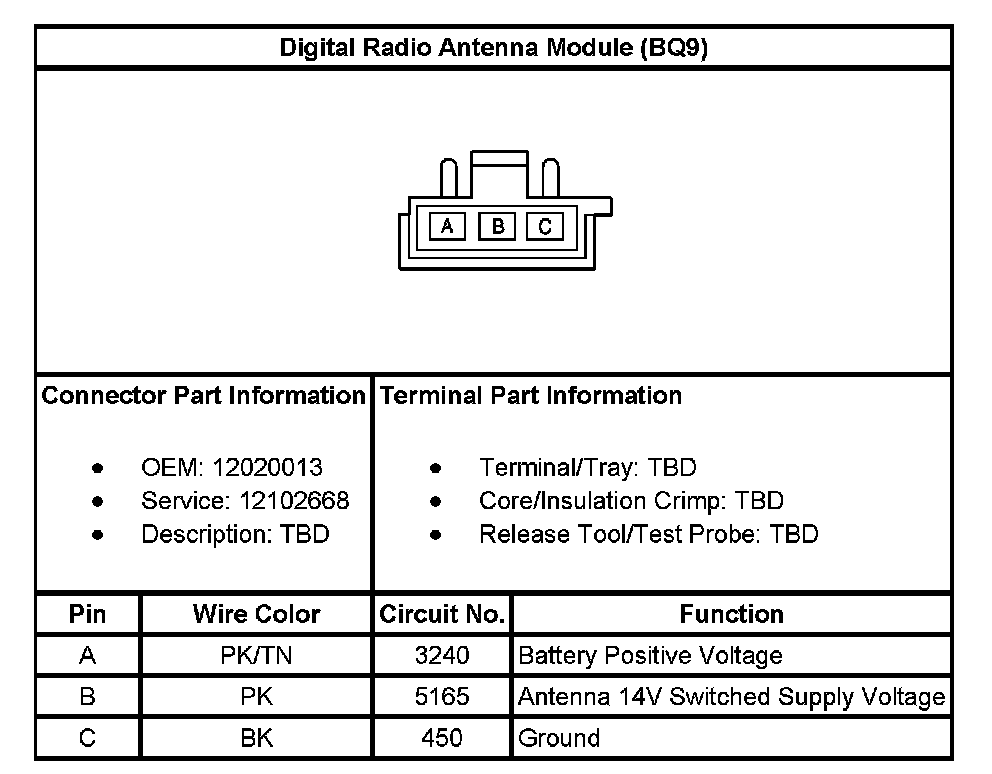

Digital Radio Antenna Module (With RPO Code BQ9):



Digital Radio Antenna Module (Without RPO Code BQ9):
