Torque Converter Clutch Solenoid: Diagrams



Automatic Transmission Internal Connector End Views

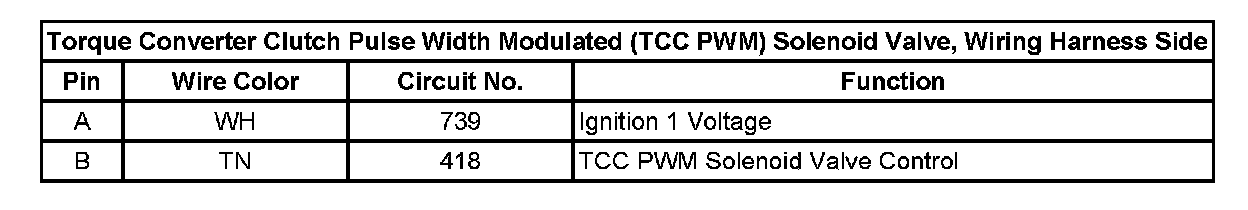

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve, Wiring Harness Side

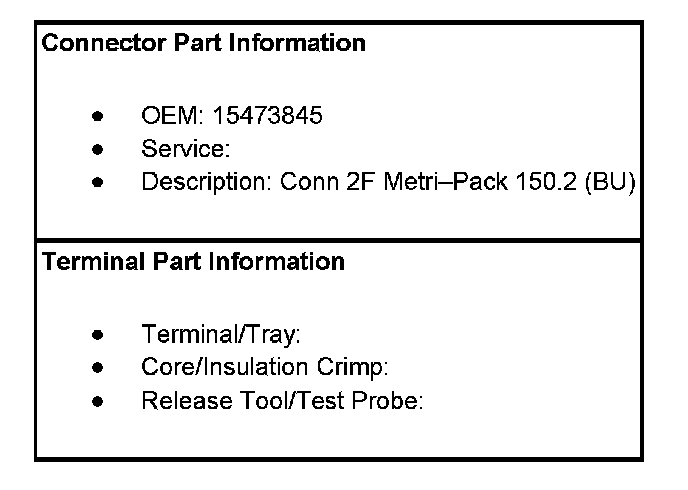

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve, Wiring Harness:
