Fuel Filler Hose Replacement

FUEL FILLER HOSE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the fuel tank.
2. Loosen the fuel fill hose clamp (1) at the fuel tank.
3. Remove the fuel fill hose from the fuel tank.

INSTALLATION PROCEDURE

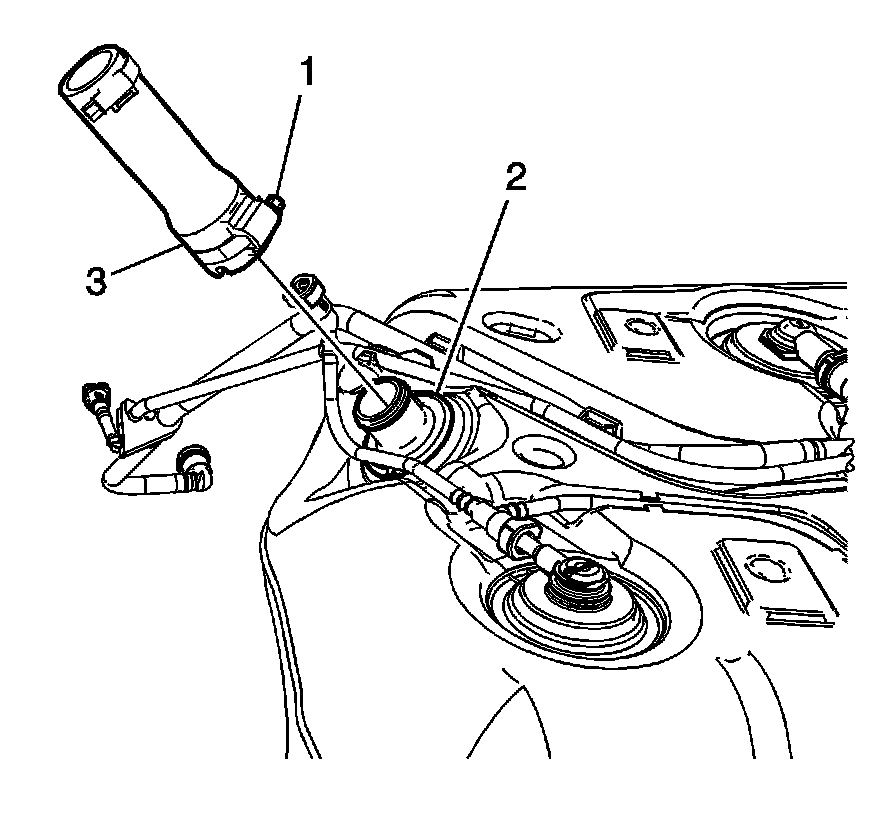

1. Install the fuel fill hose to the fuel tank. Ensure that the notch (3) in the fill hose is aligned with the notch on the fuel tank.
2. Tighten the fuel fill hose clamp (1) at the fuel tank.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the fuel filler hose clamp to 4 N.m (35 lb in).

3. Install the fuel tank.
