Engine Mount Strut Bracket Replacement - Right

Engine Mount Strut Bracket Replacement - Right

Removal Procedure





1. Remove the engine mount strut.
2. Remove the right front wheel and tire.

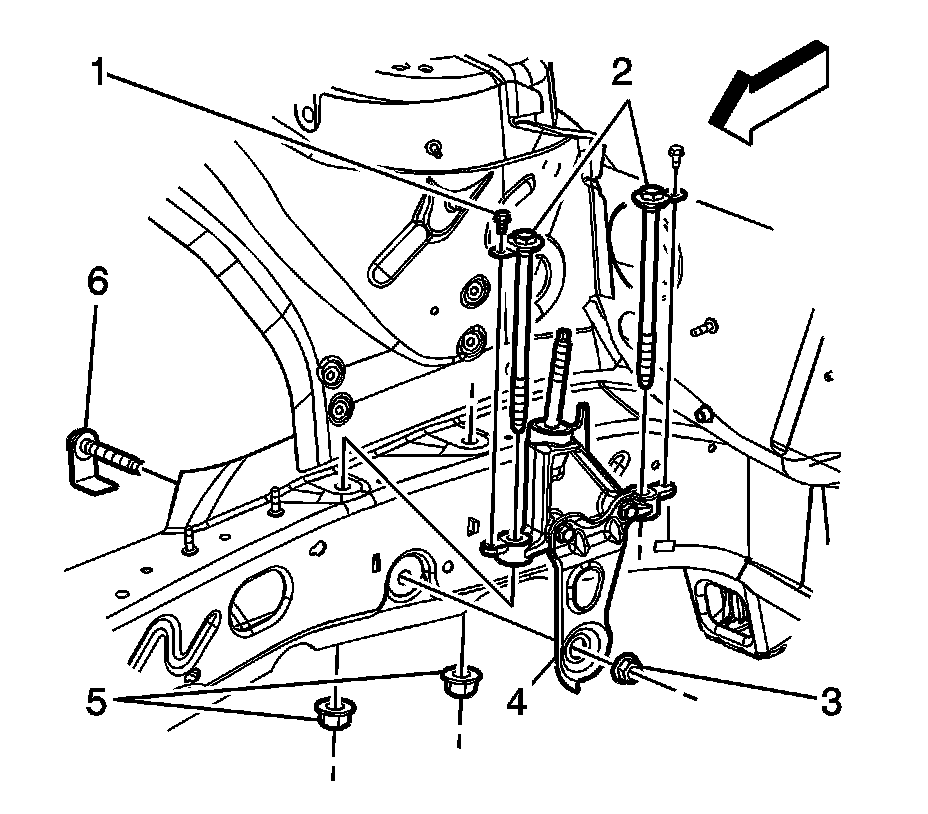

3. Remove the engine mount strut bracket bolts (1).
4. Remove the strut bracket nut (3).
5. Remove the strut bracket bolt (6).
6. Remove the strut bracket nuts (5).
7. Remove the strut bracket bolts (2).
8. Remove the strut bracket (4).

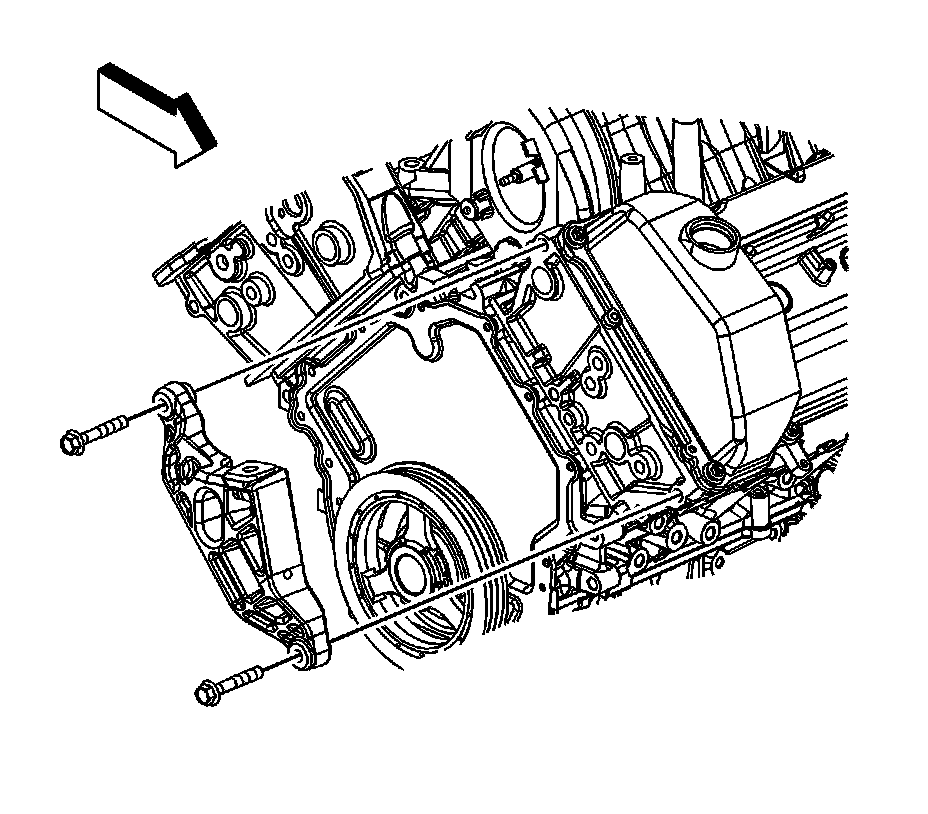

9. Remove the engine mount strut bracket to engine bolts.
10. Remove the engine mount strut bracket.

Installation Procedure





1. Position the engine mount strut bracket to the cylinder head.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the engine mount strut bracket to engine bolts.
Tighten the bolts to 50 Nm (37 ft. lbs.).





3. Position the engine mount strut bracket (4) to the front compartment rail.
4. Install the strut bracket bolts (2).
5. Install the strut bracket bolt (6).
6. Install the strut bracket nut (3).
Tighten the nut to 70 Nm (52 ft. lbs.).
7. Install the strut bracket nuts (5).
Tighten the nuts to 70 Nm (52 ft. lbs.).
8. Install the strut bracket bolts (1).
Tighten the bolts to 6 Nm (53 inch lbs.).
9. Install the right front wheel and tire.
10. Install the engine mount strut.
