Engine Mount Replacement - Right



Engine Mount Replacement - Right

Removal Procedure





1. Remove the frame.

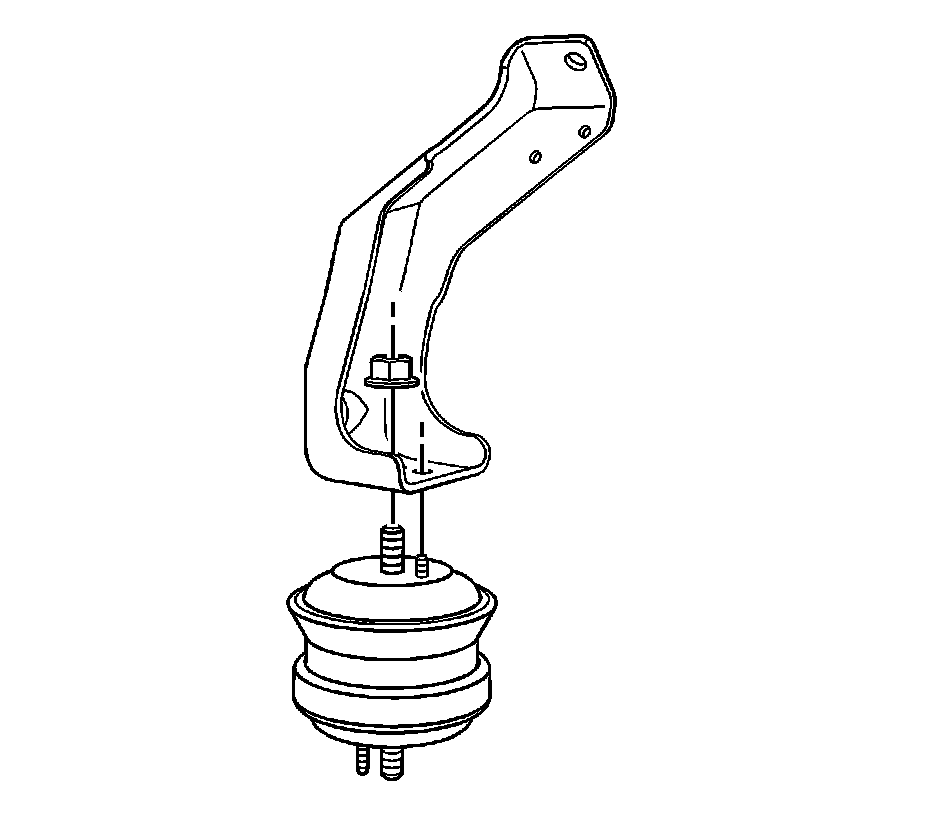

2. Remove the right engine mount to engine mount bracket nut.
3. Remove the right engine mount.

Installation Procedure





1. Install the right engine mount stud through the hole in the engine mount bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the right engine mount to engine mount bracket nut.
Tighten the nut to 80 Nm (59 ft. lbs.).
3. Install the frame.
