Engine Mount Replacement - Front



Engine Mount Replacement - Front

Removal Procedure





1. Remove the frame.

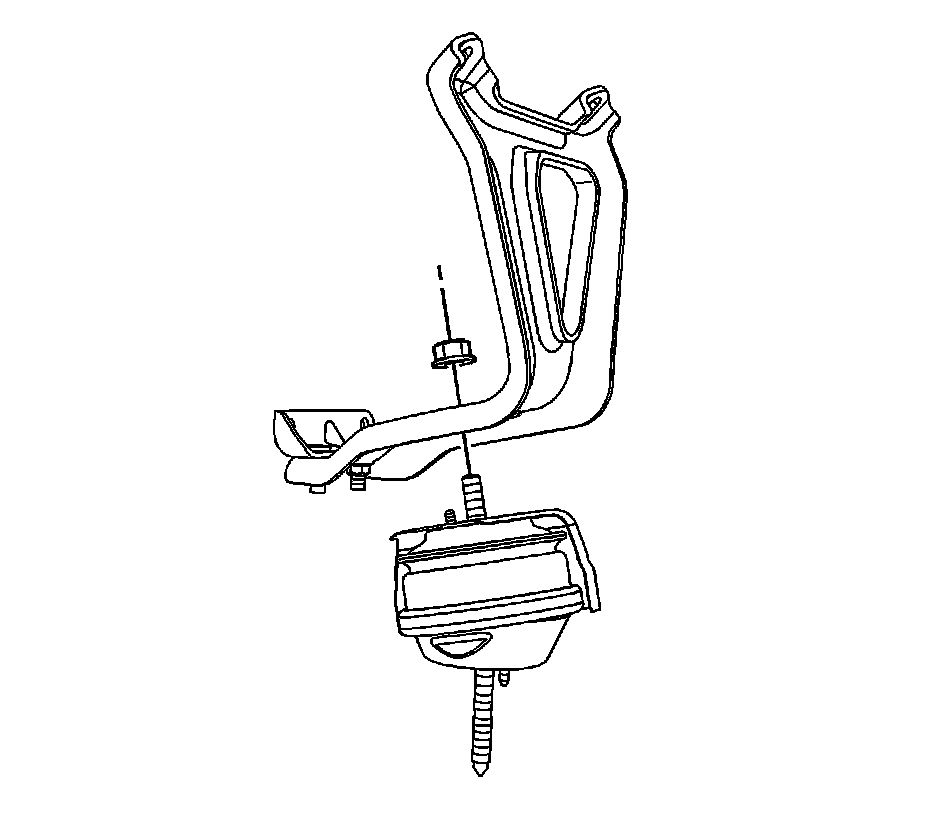

2. Remove the front engine mount to engine mount bracket nut.
3. Remove the front engine mount.

Installation Procedure





1. Install the front engine mount stud through the hole in the front engine mount bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the front engine mount to engine mount bracket nut.
Tighten the nut to 80 Nm (59 ft. lbs.).
3. Install the frame.
