Thermostat: Service and Repair

Thermostat Replacement

Tools Required
^ J38185 Hose Clamp Pliers

Removal Procedure





1. Remove the air cleaner.
2. Drain the cooling system.
3. Using the J38185, reposition the radiator outlet hose clamp at the thermostat housing.
4. Remove the radiator outlet hose from the thermostat housing.

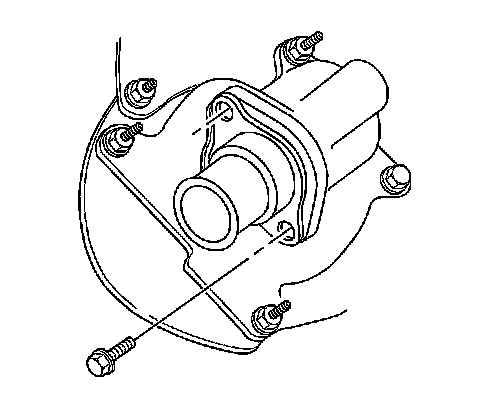

5. Remove the thermostat housing bolts.

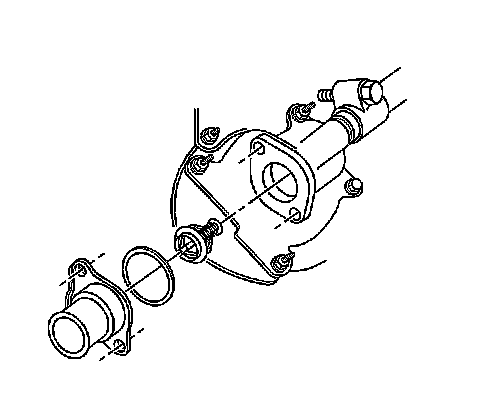

6. Remove the thermostat housing, thermostat, and gasket from the water pump housing.
7. Discard the old thermostat housing gasket.

Installation Procedure





1. Install a NEW thermostat housing gasket into the water pump housing.
2. Install the thermostat into the water pump housing.
3. Install the thermostat housing.





Notice: Refer to Fastener Notice in Service Precautions.

4. Install the thermostat housing bolts.
Tighten the bolts to 10 Nm (89 inch lbs.).





5. Install the radiator outlet hose to the thermostat housing.
6. Using the J38185, position the radiator outlet hose clamp at the thermostat housing.
7. Fill the cooling system.
8. Install the air cleaner.
