Home
>>
Cadillac
>>
2006
>>
DTS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tilt Wheel Motor
>>
Tilt Actuator C1
Tilt Actuator C1
Steering Wheel

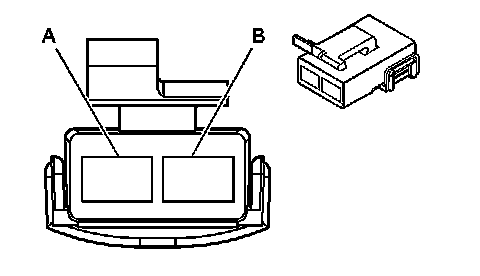

and Column Connector End Views

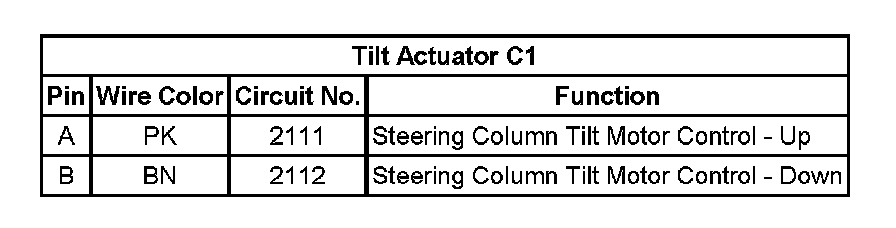

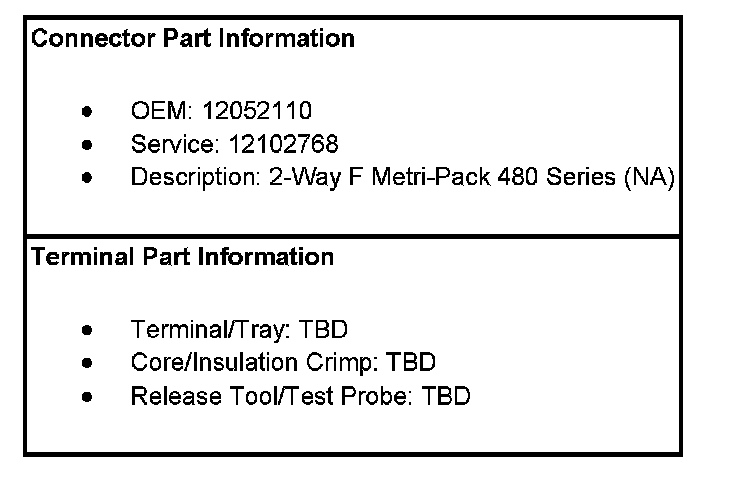

Tilt Actuator C1:
