Telescoping Actuator C1



Steering Wheel and Column Connector End Views

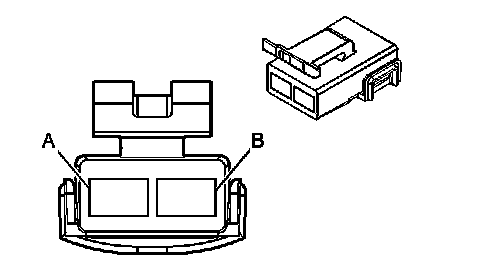

Telescoping Actuator C1:

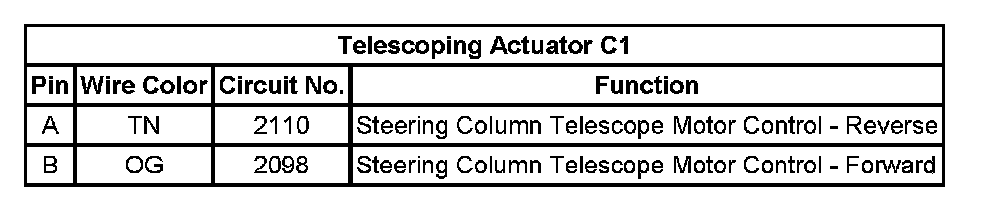

Telescoping Actuator C1:
