Driver Position Module C5
Driver Position Module C5

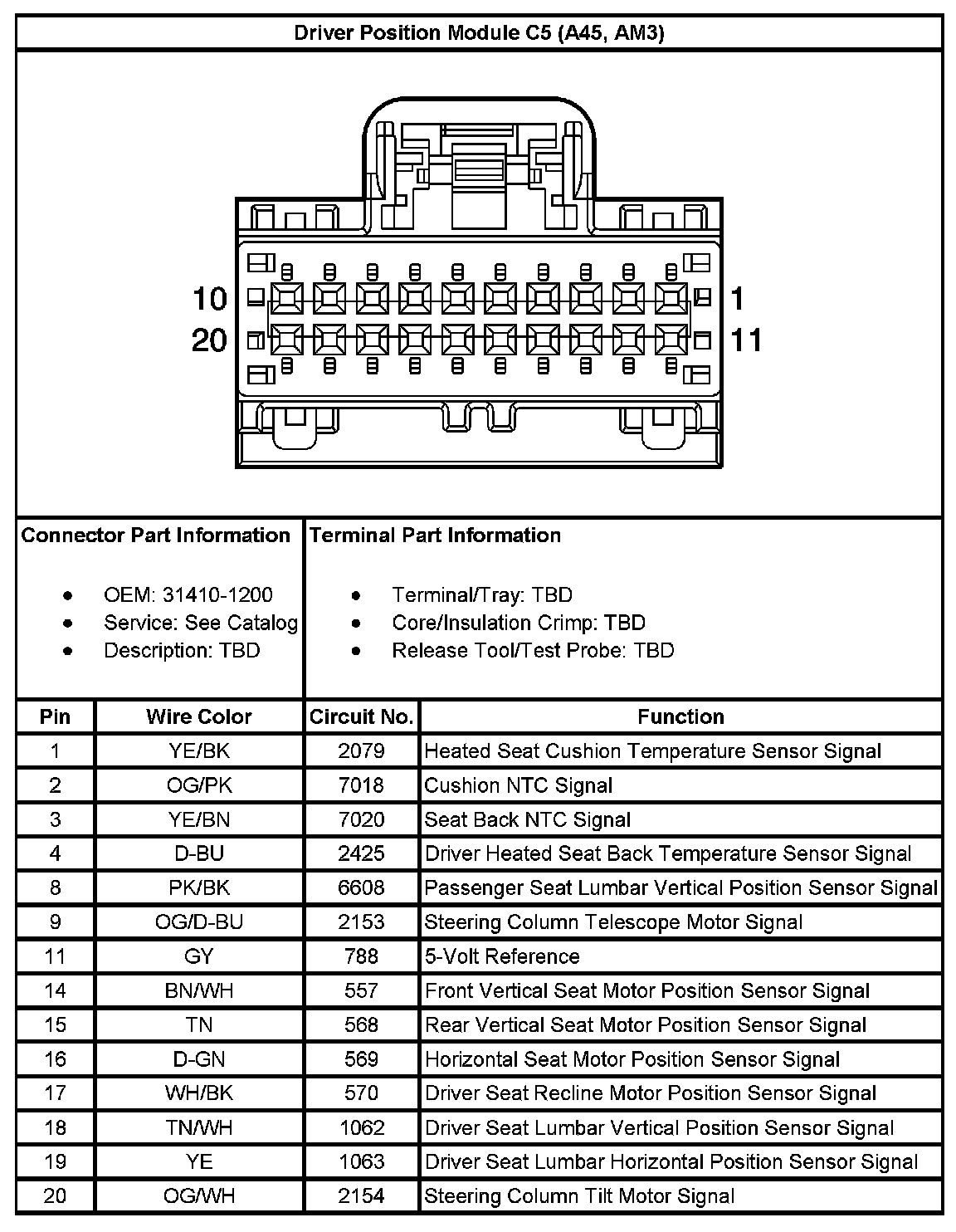

Driver Position Module C5 (With RPO Code A45, AM3):
