Seat Temperature Switch

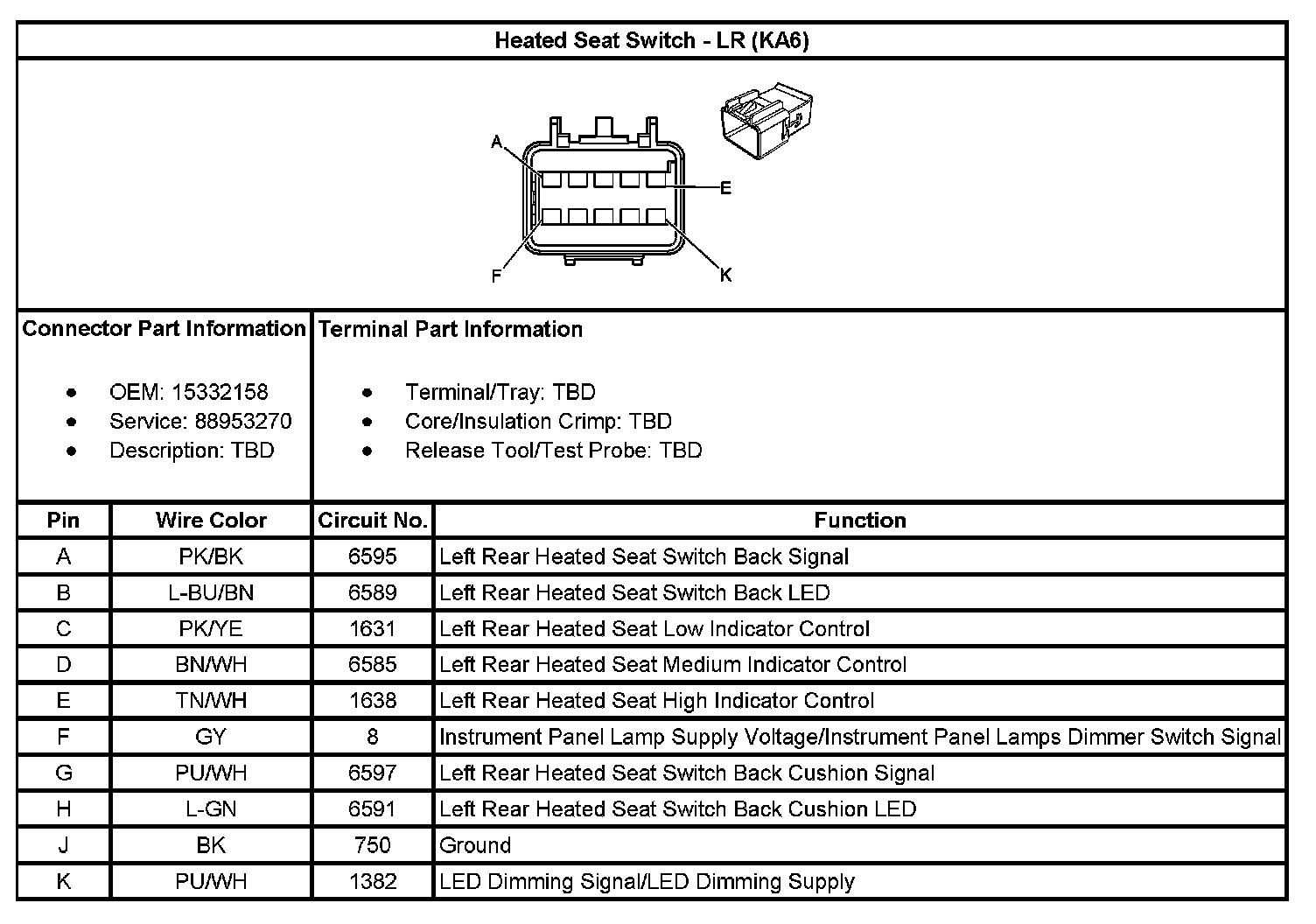

Heated Seat Switch - LR (With RPO Code KA6):

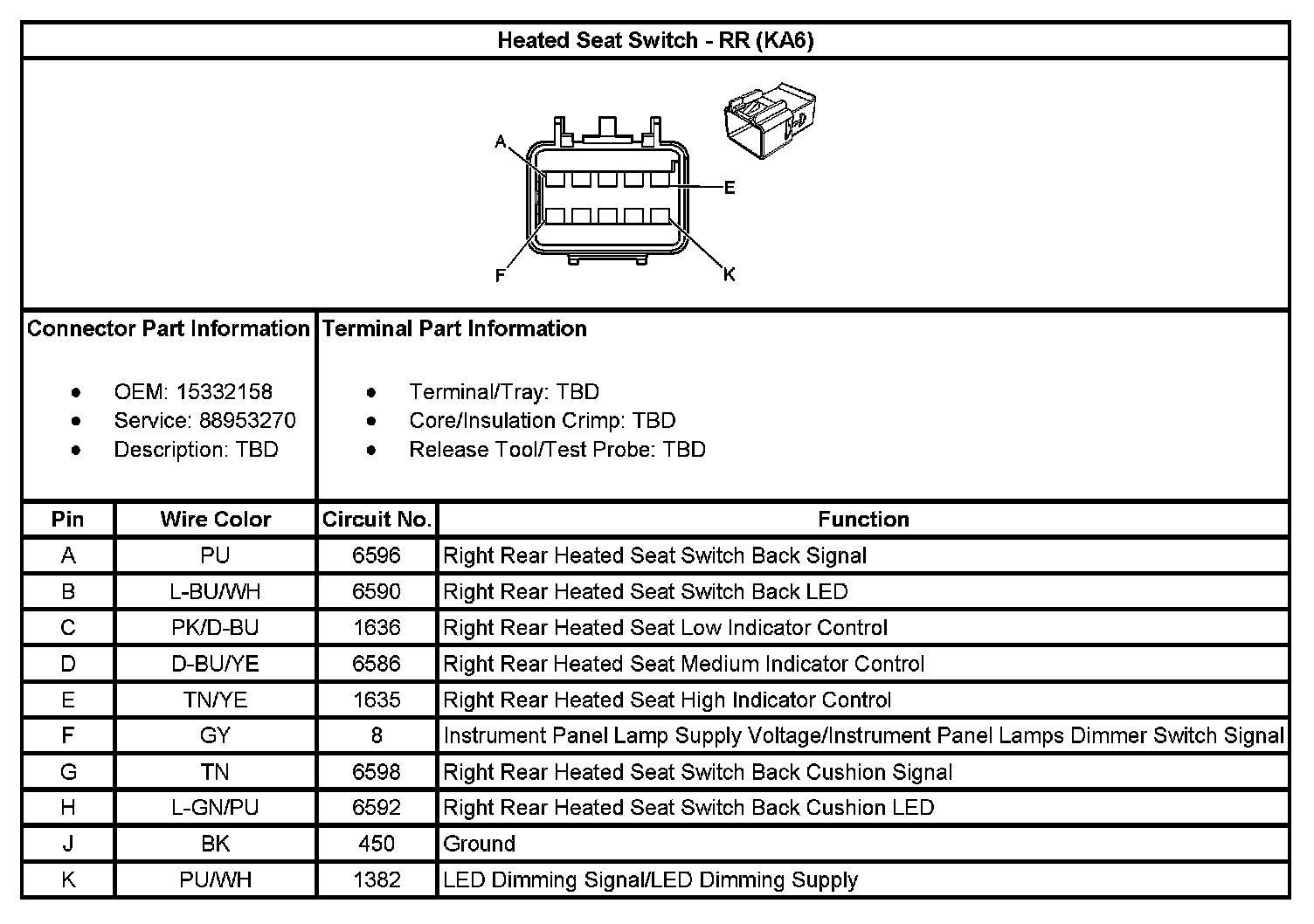

Heated Seat Switch - RR (With RPO Code KA6):
