Seats
>>
Power Seat Switch
>>
Seat Lumbar Massage Switch
Seat Lumbar Massage Switch

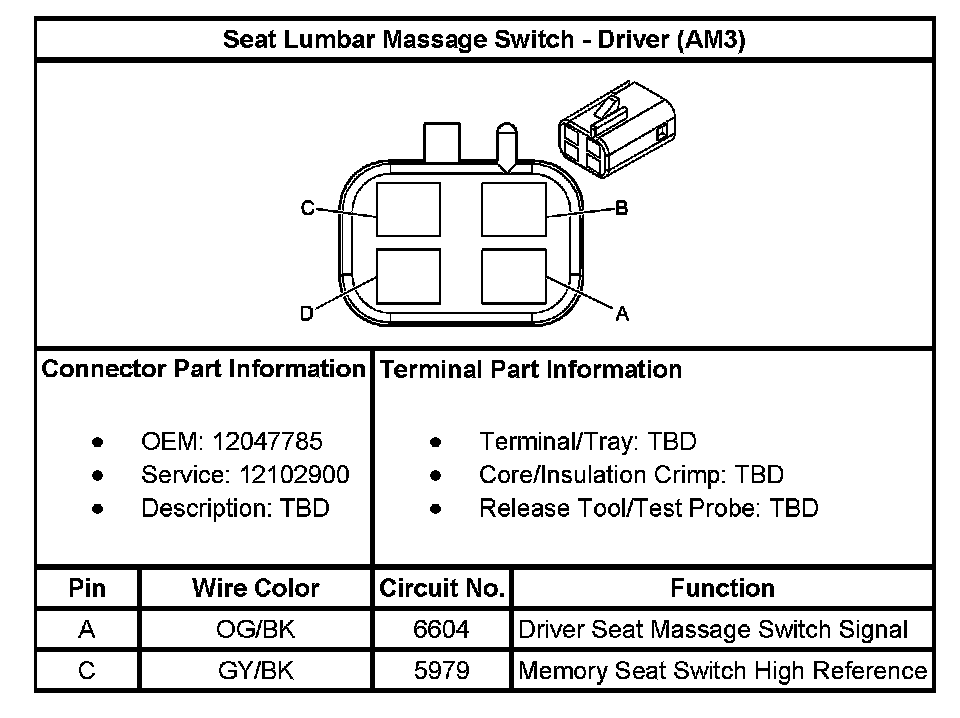

Seat Lumbar Massage Switch - Driver (With RPO Code AM3):

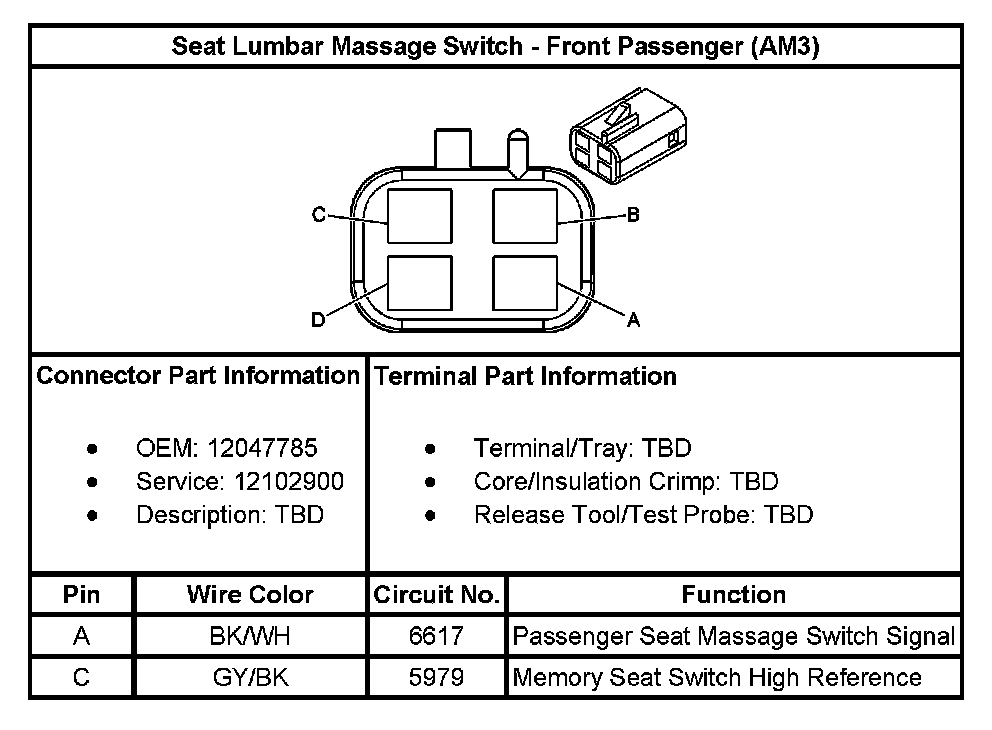

Seat Lumbar Massage Switch - Front Passenger (With RPO Code AM3):
