Seat Lumbar Vertical Motor
Seat Lumbar Vertical Motor

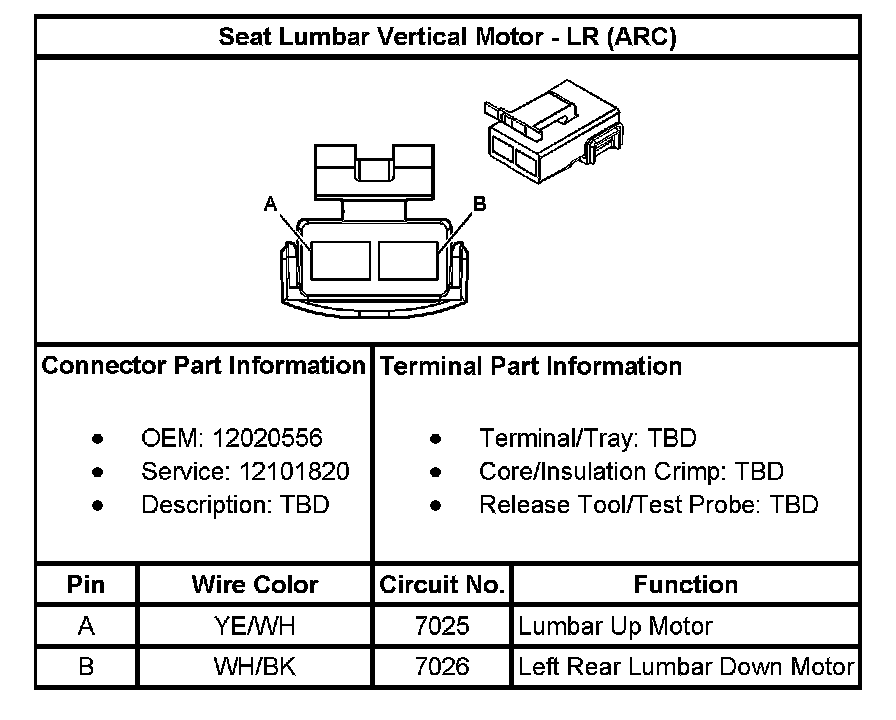

Seat Lumbar Vertical Motor - LR (With RPO Code ARC):
Seat Lumbar Vertical Motor - RR (With RPO Code ARC):
