Seat Lumbar Motor

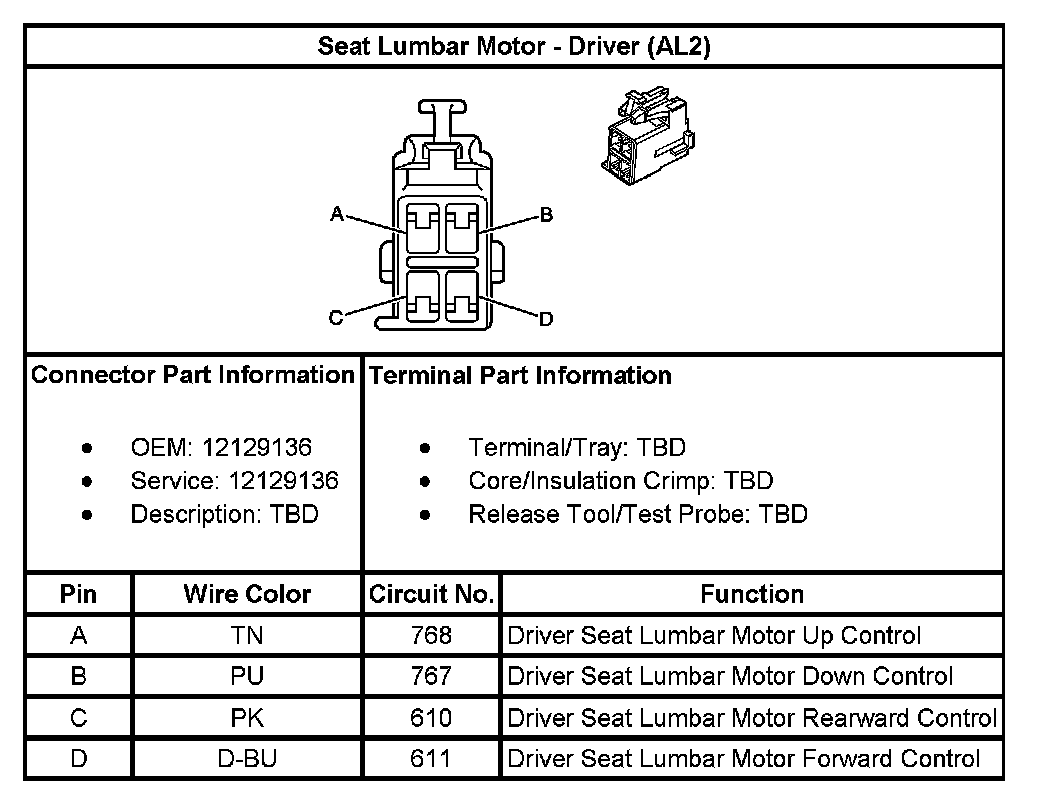

Seat Lumbar Motor - Driver (With RPO Code AL2):

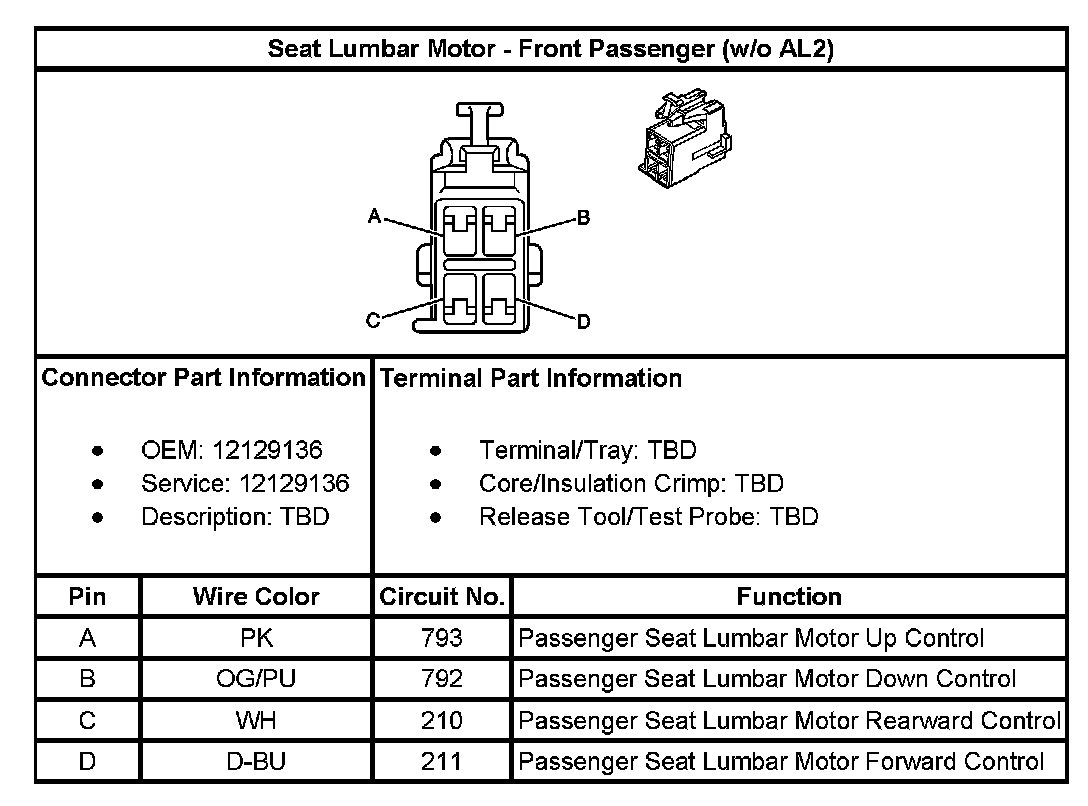

Seat Lumbar Motor - Front Passenger (Without RPO Code AL2):

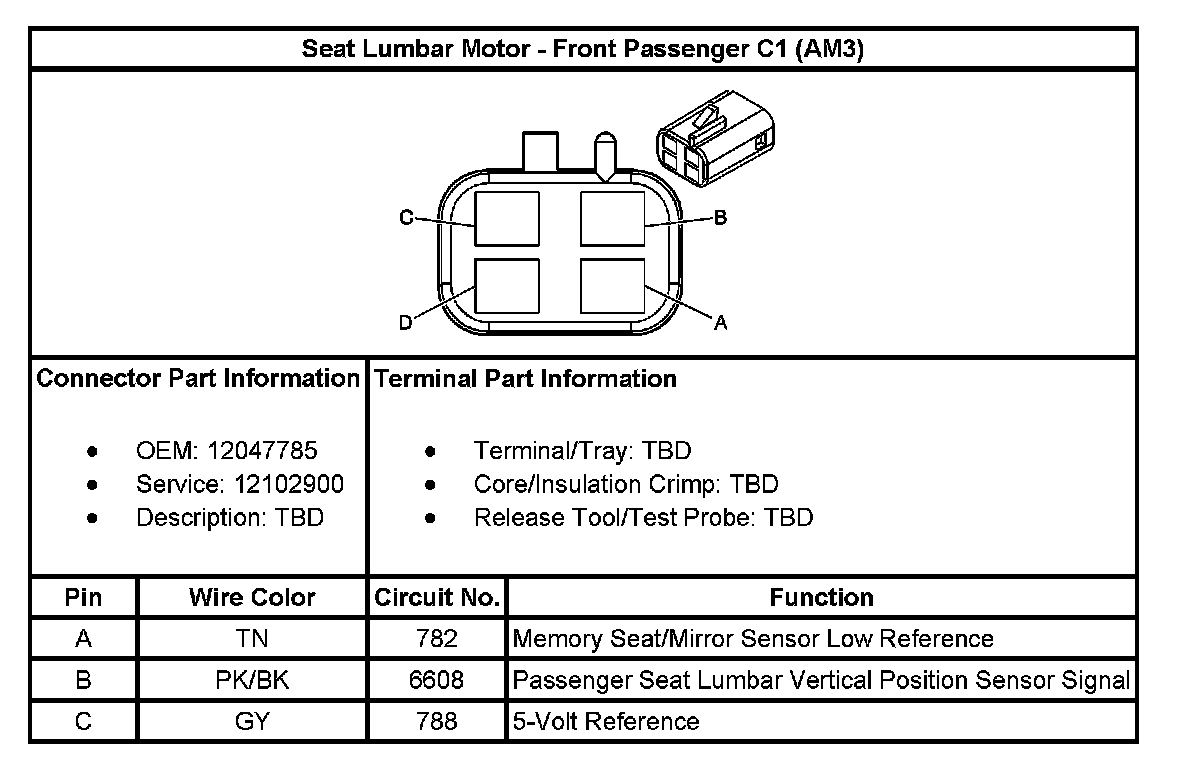

Seat Lumbar Motor - Front Passenger C1 (With RPO Code AM3):

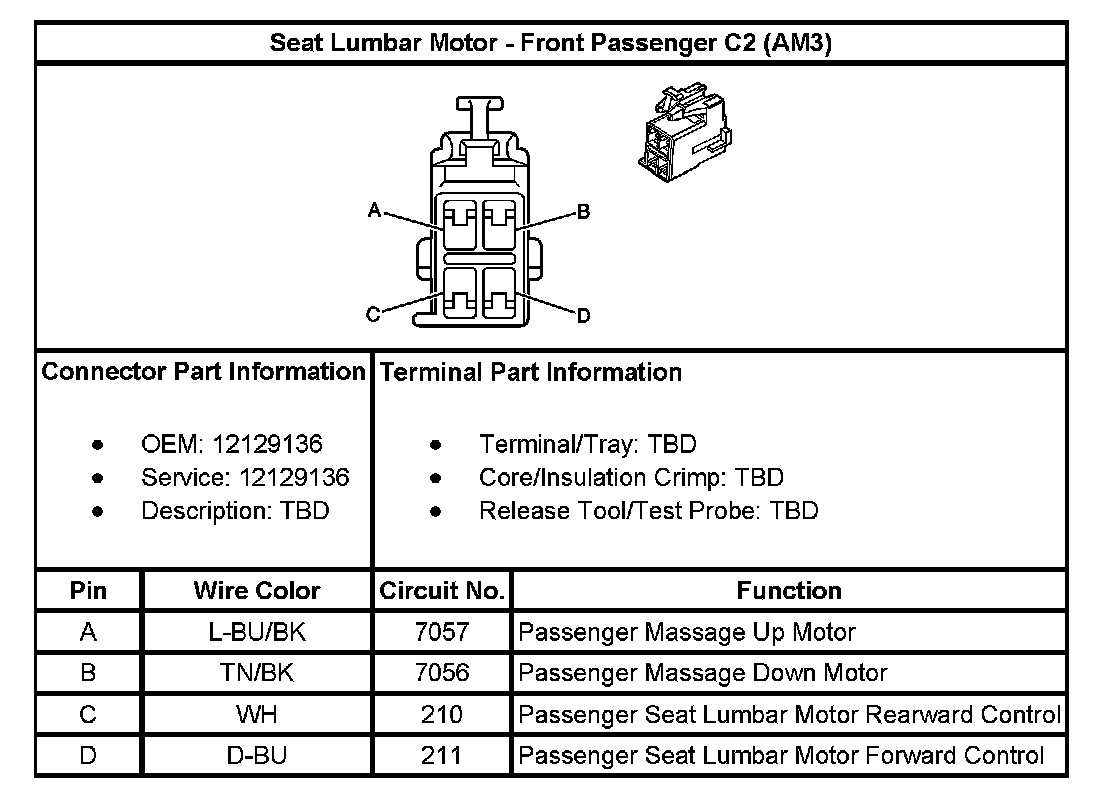

Seat Lumbar Motor - Front Passenger C2 (With RPO Code AM3):
