Cadillac
>>
2006
>>
DTS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Motor
>>
Seat Lumbar Massage Motor
Seat Lumbar Massage Motor

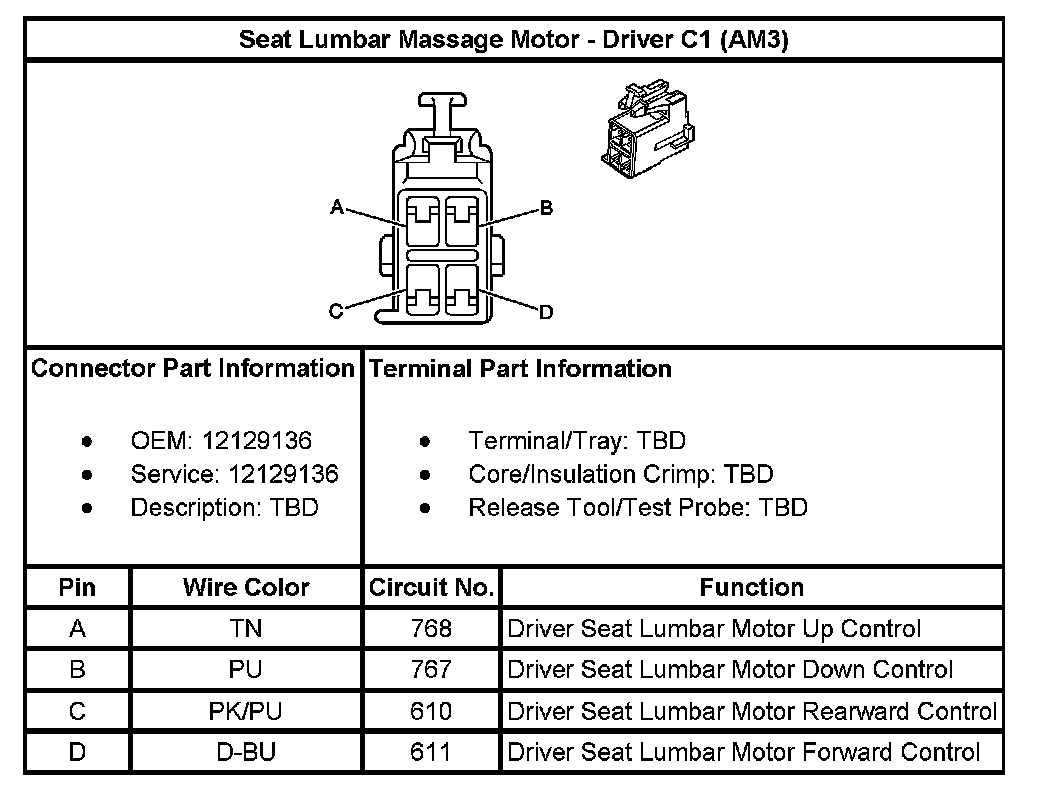

Seat Lumbar Massage Motor - Driver C1 (With RPO Code AM3):

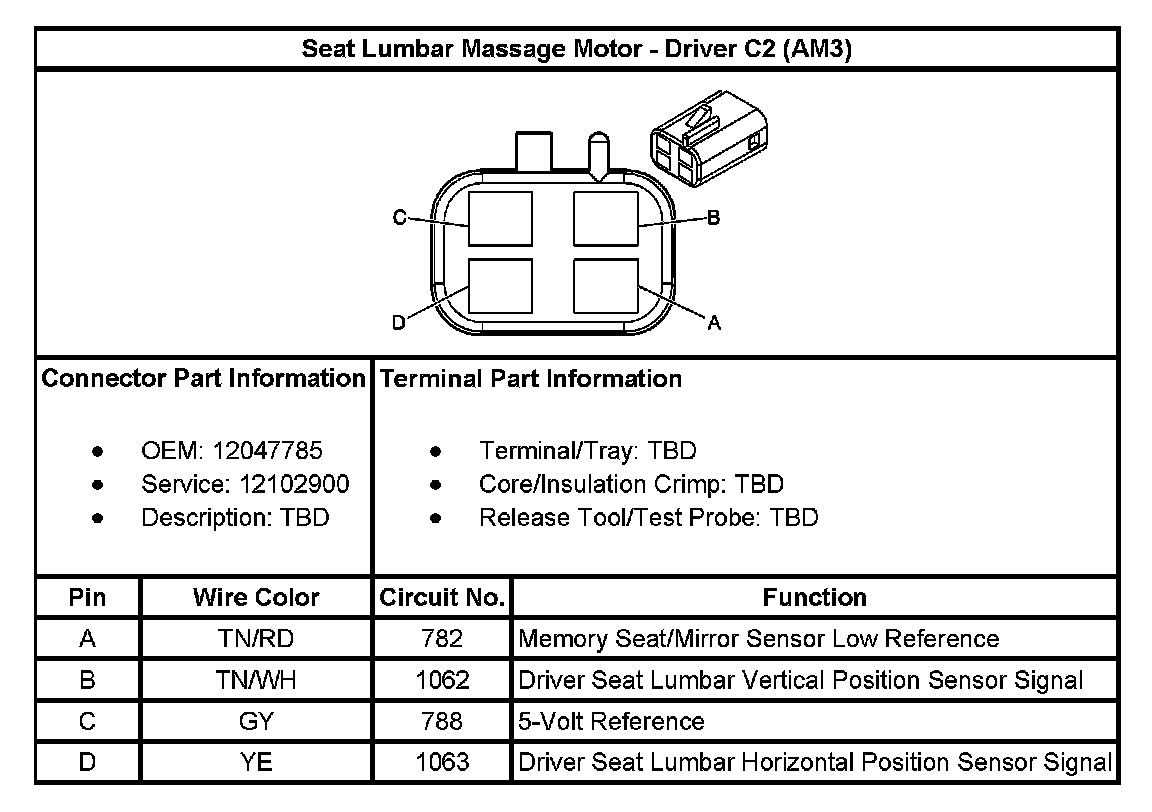

Seat Lumbar Massage Motor - Driver C2 (With RPO Code AM3):
