Impact Sensor
>>
Inflatable Restraint Passenger Presence System (PPS) Sensor
Inflatable Restraint Passenger Presence System (PPS) Sensor

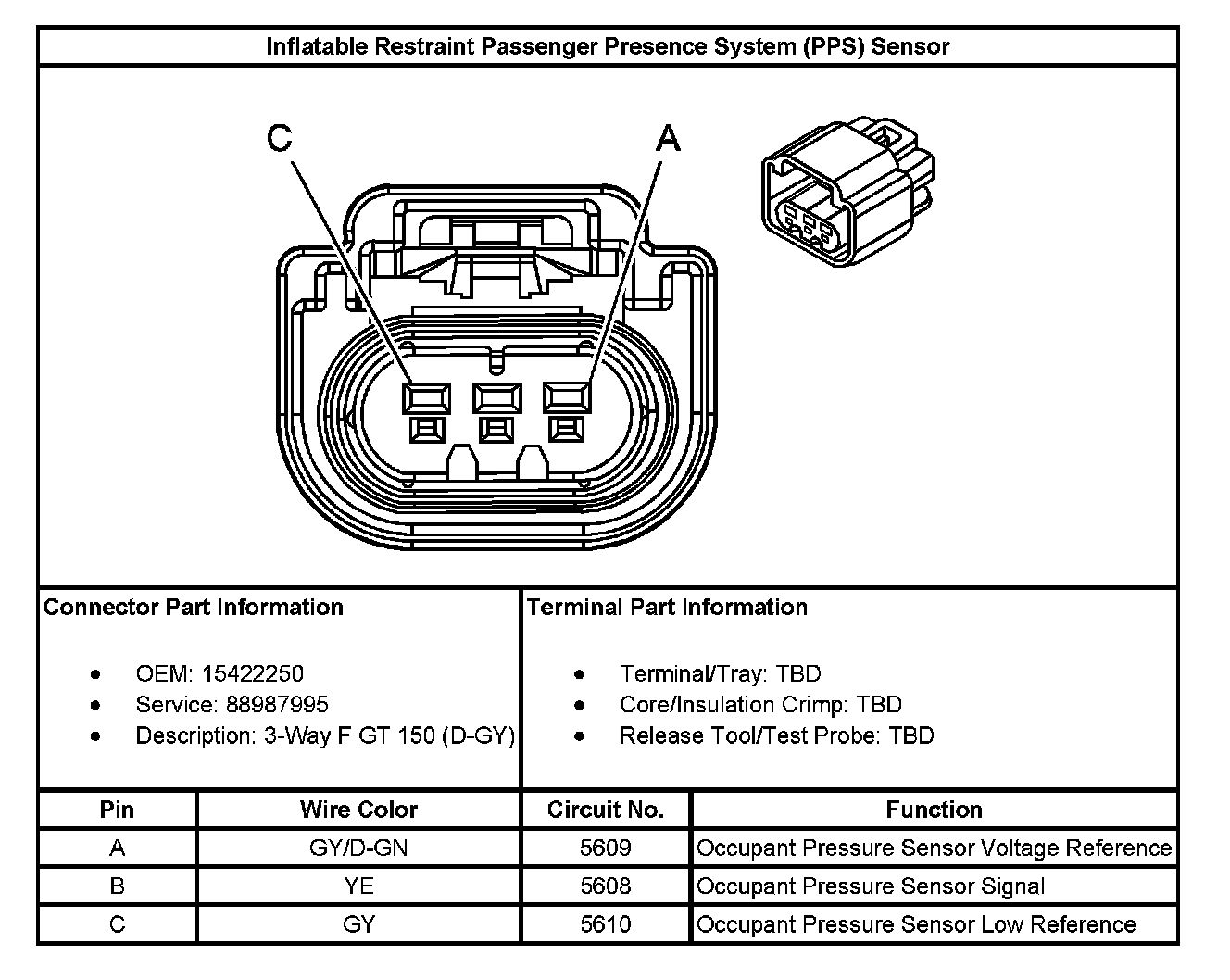

Inflatable Restraint Passenger Presence System (PPS) Sensor:
