Door Latch Assembly - Right Middle
Door Latch Assembly - Right Middle

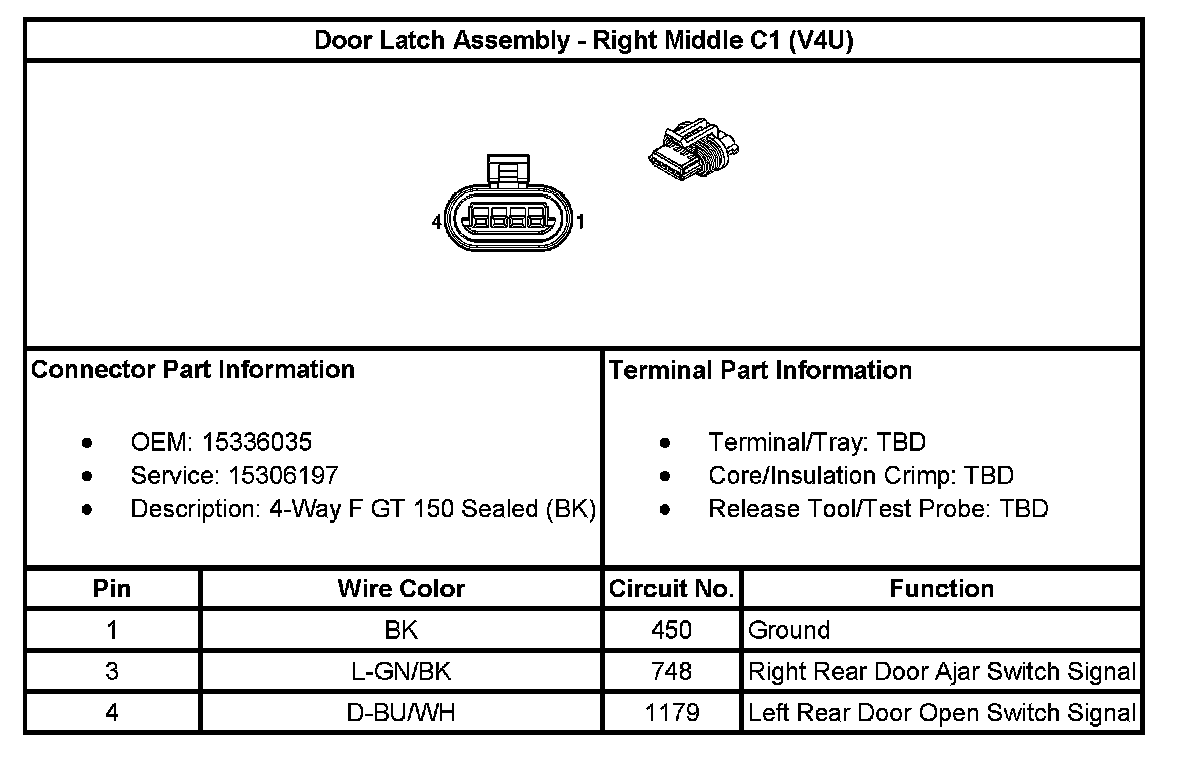

Door Latch Assembly - Right Middle C1 (With RPO Code V4U):

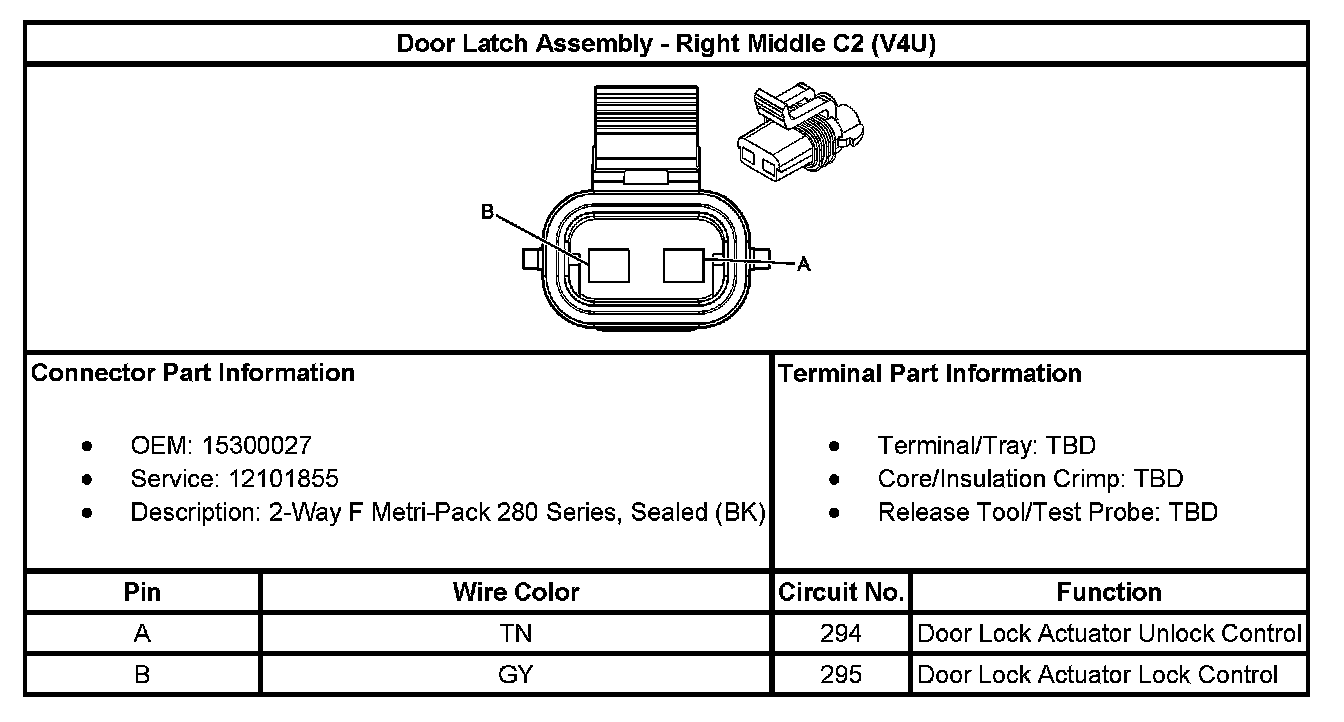

Door Latch Assembly - Right Middle C2 (With RPO Code V4U):
