Home
>>
Cadillac
>>
2006
>>
DTS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Doors
>>
Rear Door Latch
>>
Door Latch Assembly - Rear (With RPO Code B9Q)
Door Latch Assembly - Rear (With RPO Code B9Q)

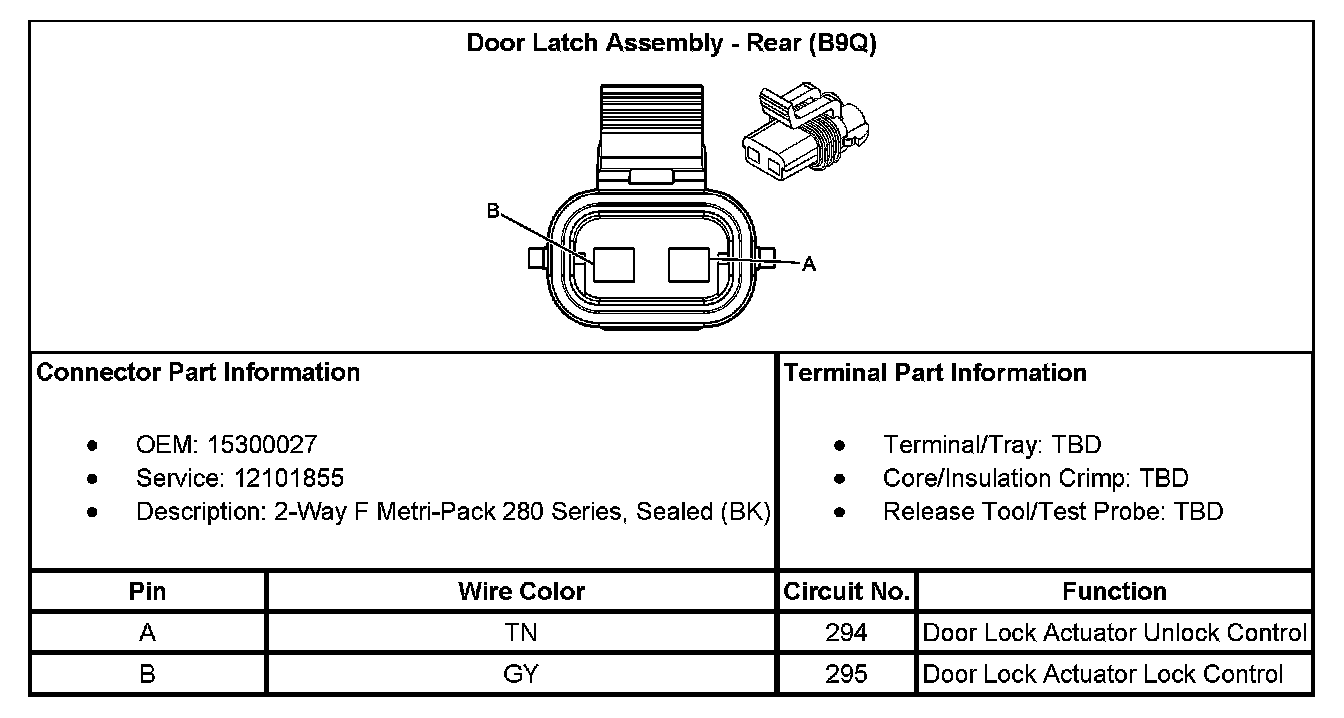

Door Latch Assembly - Rear (With RPO Code B9Q):
