Door Latch Assembly - Left Middle

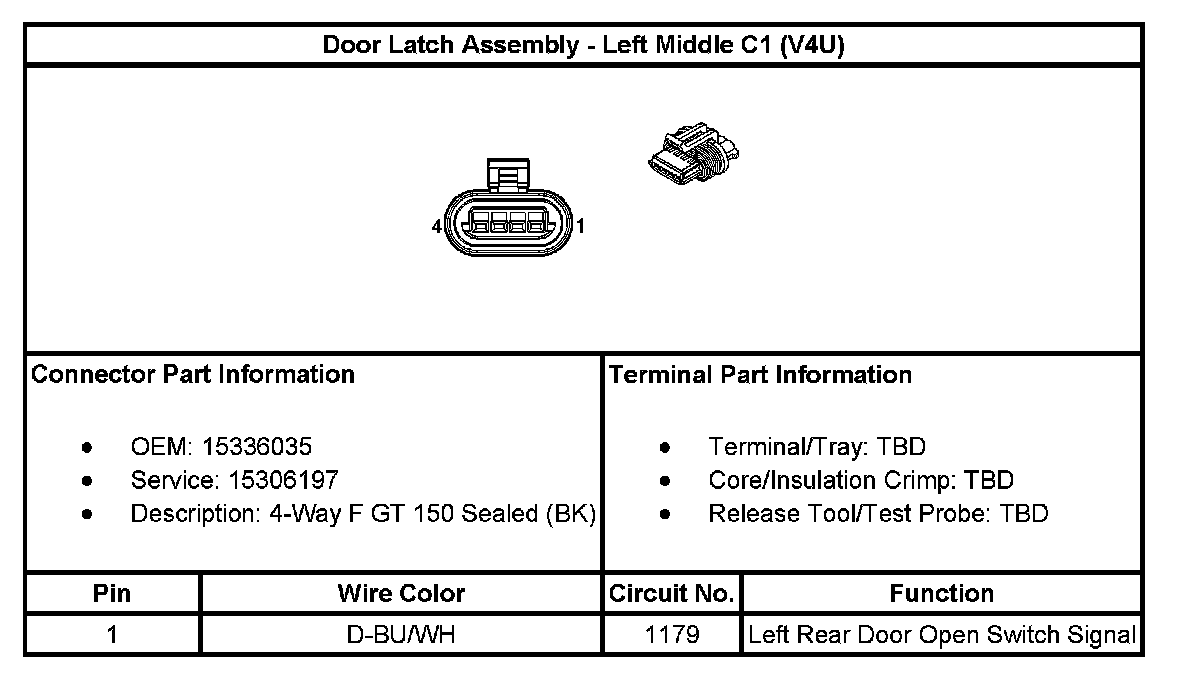

Door Latch Assembly - Left Middle C1 (With RPO Code V4U) (Part 1):

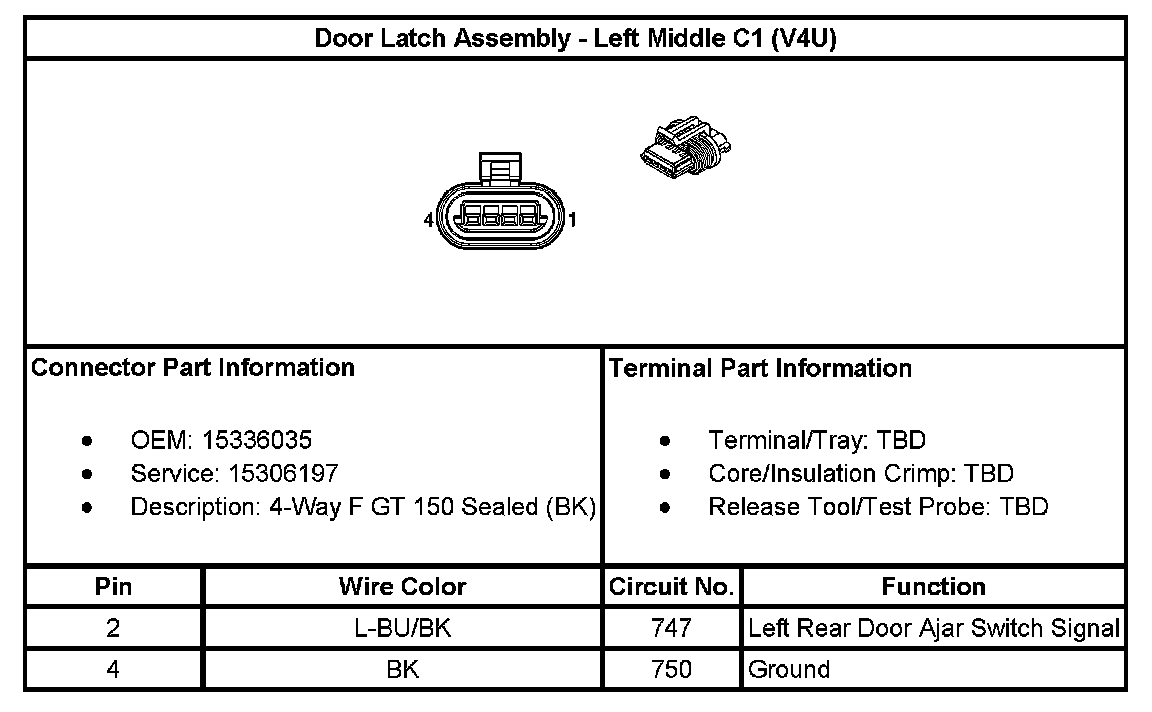

Door Latch Assembly - Left Middle C1 (With RPO Code V4U) (Part 2):

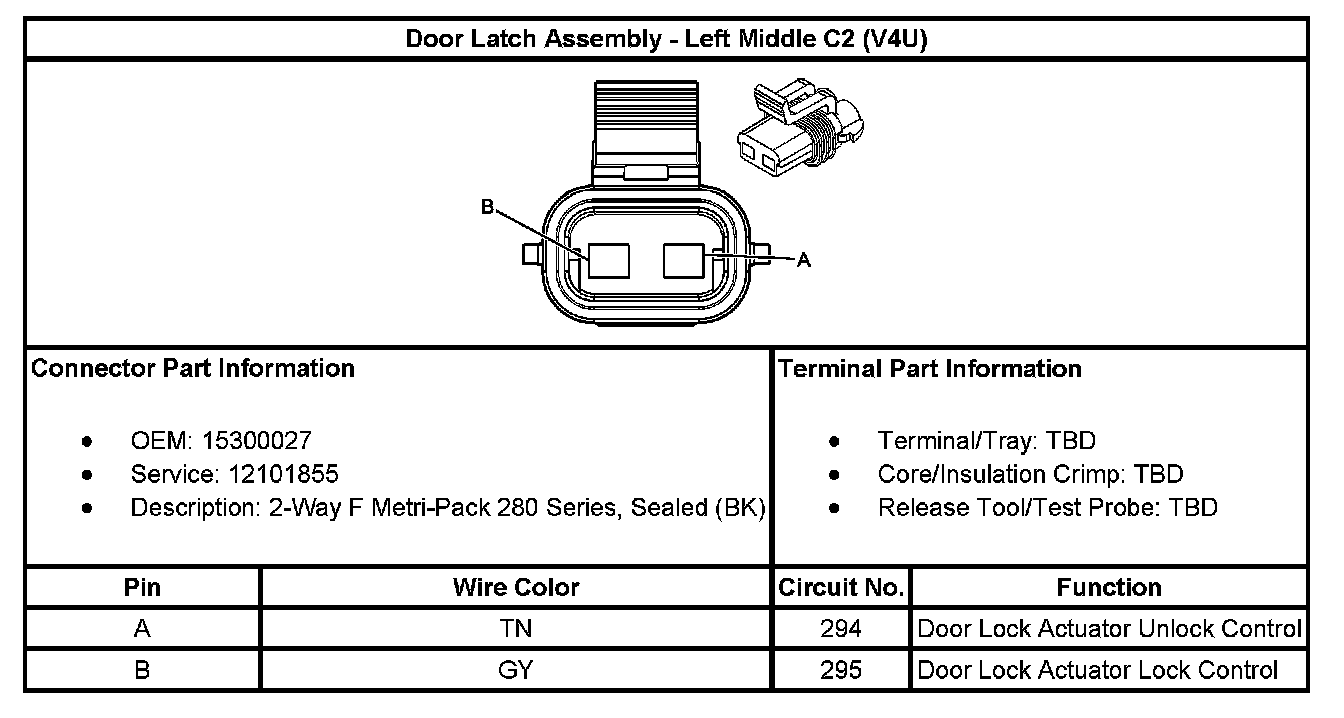

Door Latch Assembly - Left Middle C2 (With RPO Code V4U):
