Home >> Cadillac >> 2006 >> DTS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> System Diagram >> Courtesy Lamp - RR

Courtesy Lamp - RR

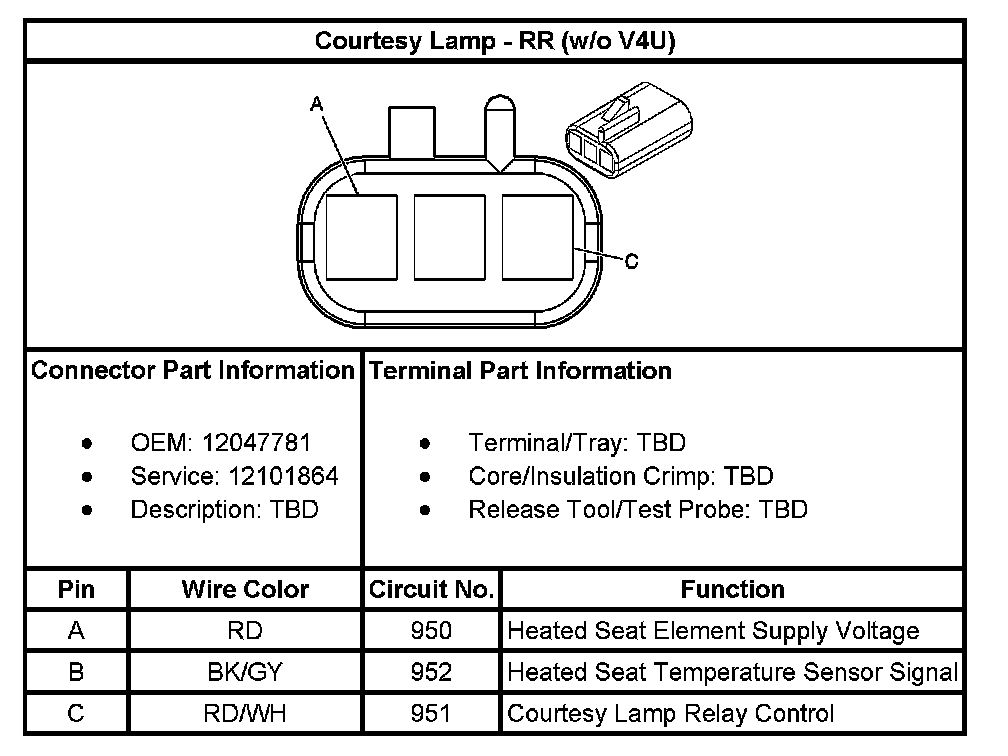

Courtesy Lamp - RR(Without RPO Code V4U):
