Cadillac
>>
2006
>>
DTS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Courtesy Lamp
>>
System Diagram
>>

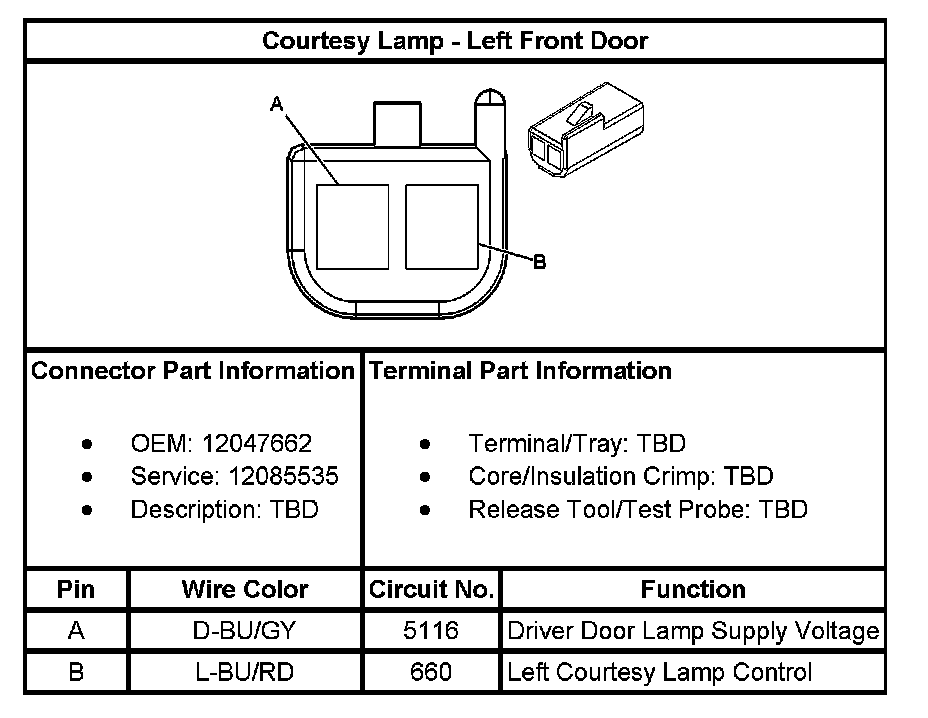

Courtesy Lamp - Left Front Door
Courtesy Lamp - Left Front Door
Courtesy Lamp - Left Front Door:
