Cadillac
>>
2006
>>
DTS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Collision Avoidance and Parking Assist Systems
>>
Parking Assist Warning Indicator
Parking Assist Warning Indicator

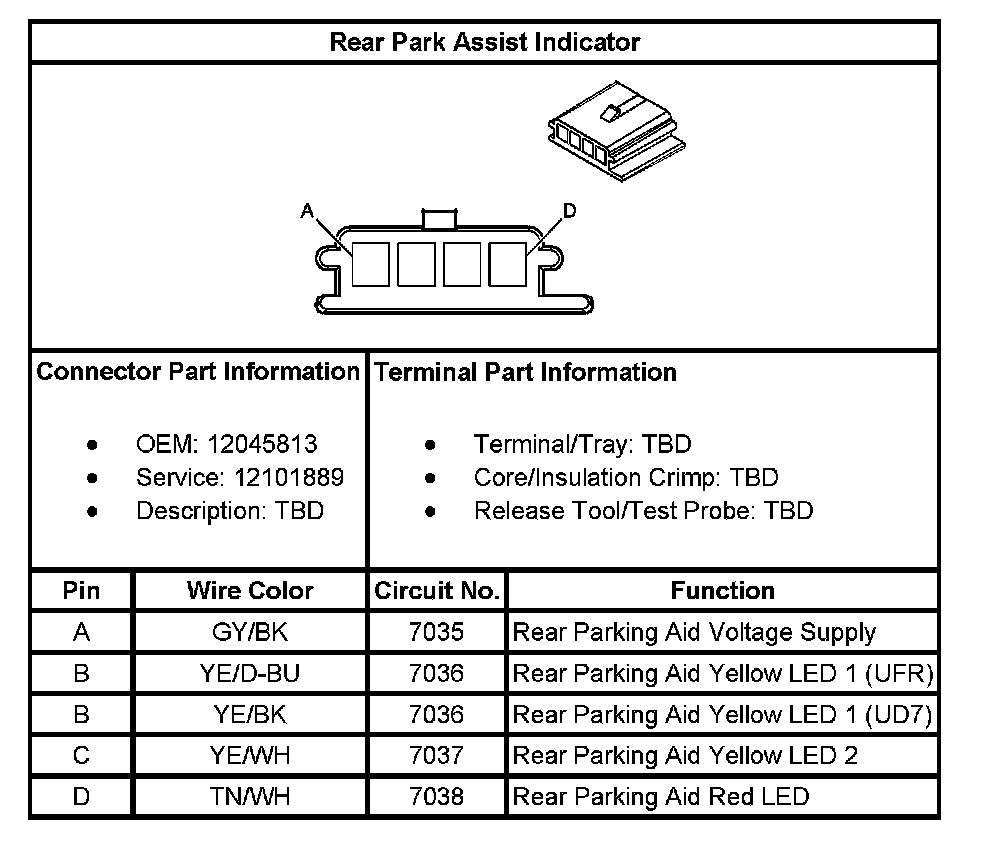

Rear Park Assist Indicator:
