Inline, Automatic Transmission Wiring Extension Harness Assembly Side
Inline, Automatic Transmission Wiring Extension Harness Assembly Side
Automatic Transmission Internal Connector End Views

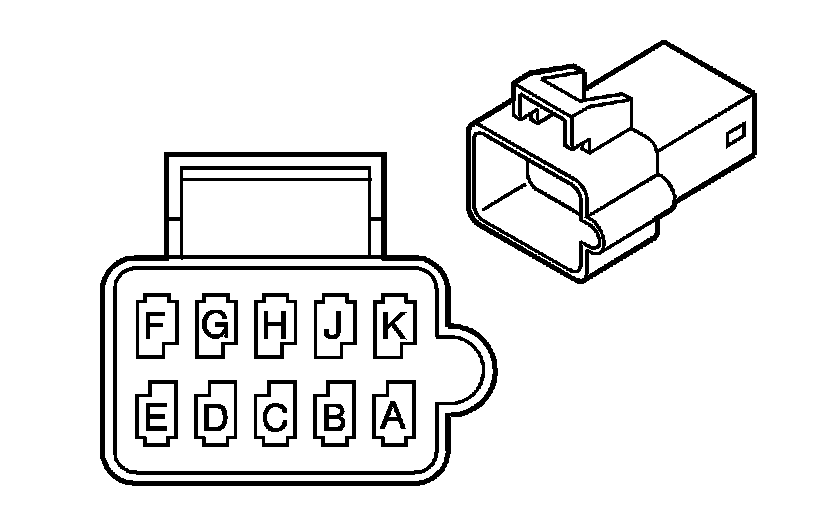

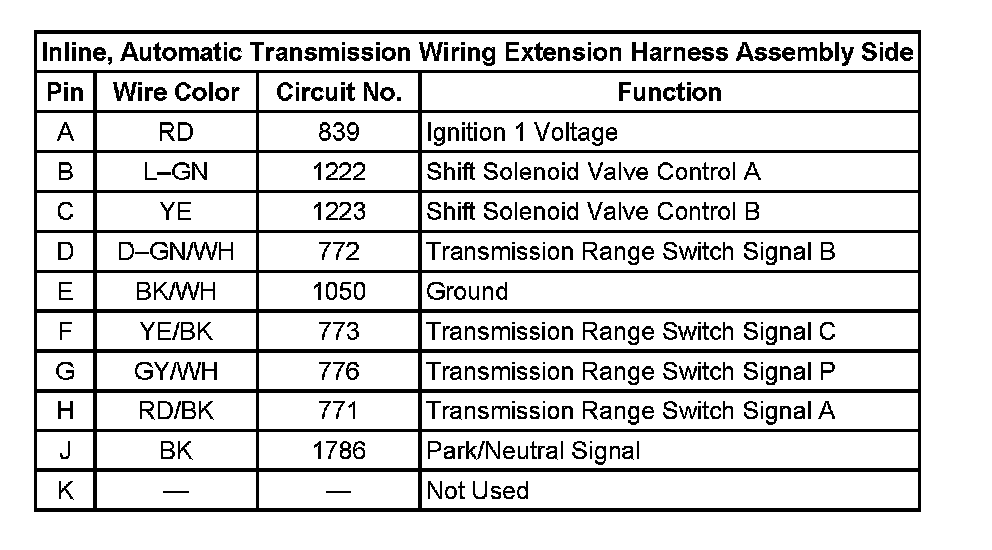

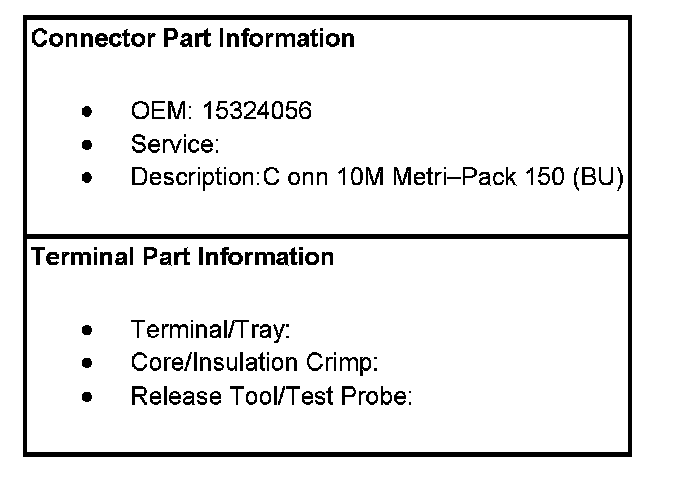

Inline, Automatic Transmission Wiring Extension Harness Assembly Side:
